Code: E/**/**/**/**/**/***/**

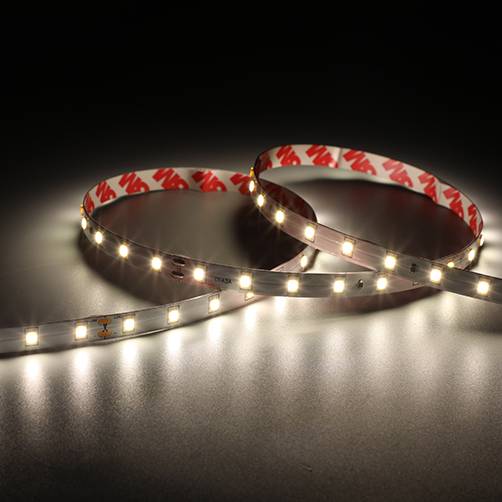

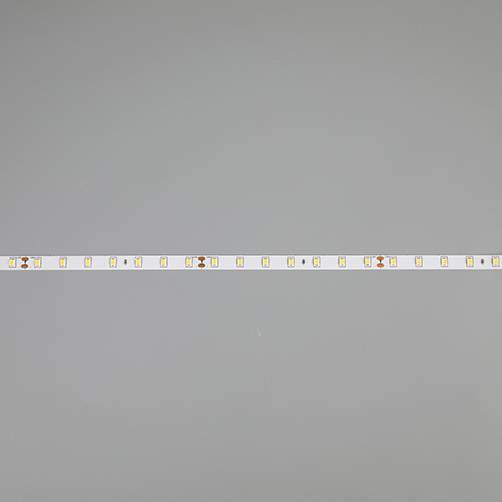

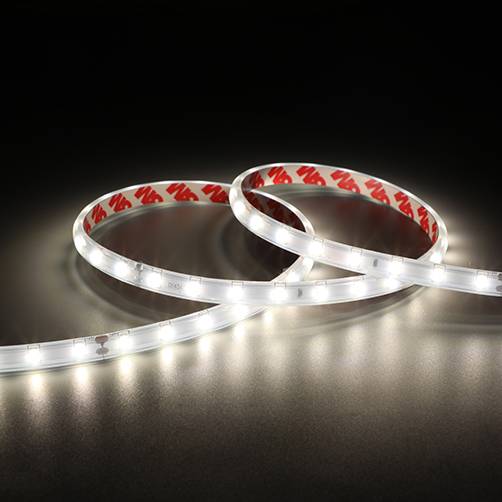

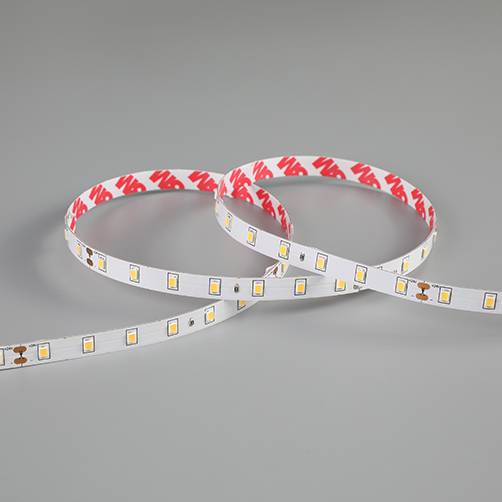

E-Cell ECO LED Strip

LED Strip

Eco LED strip with high LED density for a uniform output reducing spotting and providing a more seamless output of light compared to traditional LED strips

Where to buy Got a question?

Options

Dimmable

Specification

Input

24V

Temp

-20°C - 45°C

Lifetime

L70 36,000h

CRI

80, 90

SDCM

3, 5

Beam Angle

120

Class

IP Rating

IP20, IP65

Features

E-CELL eco LED strip suitable for residential and commercial applications
High LED density (196 LEDs per metre) provides a uniform output reducing spotting and providing a more seamless output of light compared to traditional LED strips
Fast fit plug and play connections remove the need for time consuming soldering of joints
Large strip pack sizes and multiple connector packs offers great time saving and ease when working on a large scale project
Single colour, RGB and RGBW flexible LED strip with self-adhesive back
Joint and connection accessories sold separately

Variants

FAQ

: A main benefit is in the cost of the ECO range is the product having the capability of being installed in many applications. it has a high LED density with 196 LEDs per metre which provides a uniform output, reducing spotting. Available in pack sizes of 5m, 10m and 50 m, combined with multiple connector accessories allows the installer to carry parts for several different projects as well as saving time on the installation. Versatile, flexible product that can be installed in many applications

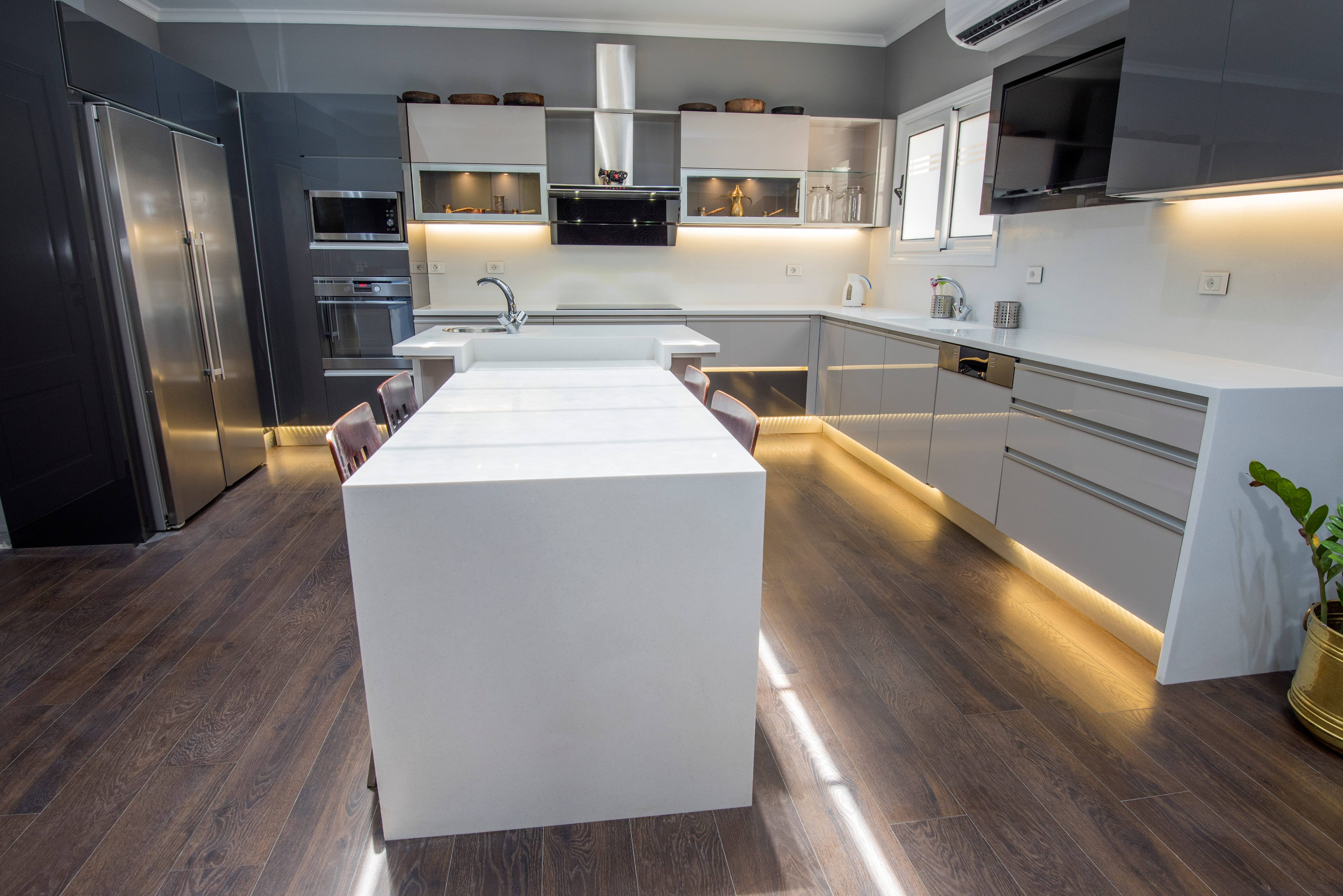

: E-Cell strip offers an ideal solution for domestic installation, for internal use, such as living rooms, bedrooms, and bathrooms, and for external use in gardens. A great answer for under shelf lighting and for alcove lighting, where it can be used either with or without the available aluminium extrusion options.
: The E-Cell LED Strip offers the introduction of new everyday LED strip range that is flexible and versatile for a range of applications. Available in a range of lengths colours and options the LED strip can be stored bought in longer lengths and then cut accordingly to each installation project.
: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
