Code: ALWPLED/**

Lynx

Bulkheads
External 5 Surface Bluetooth

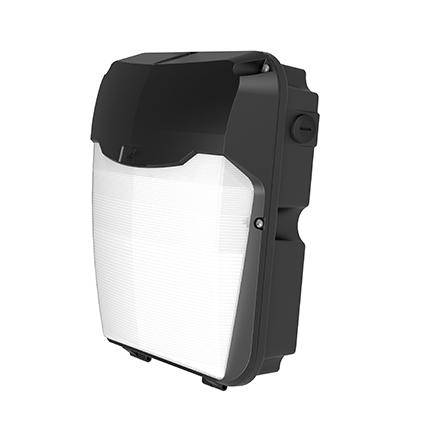

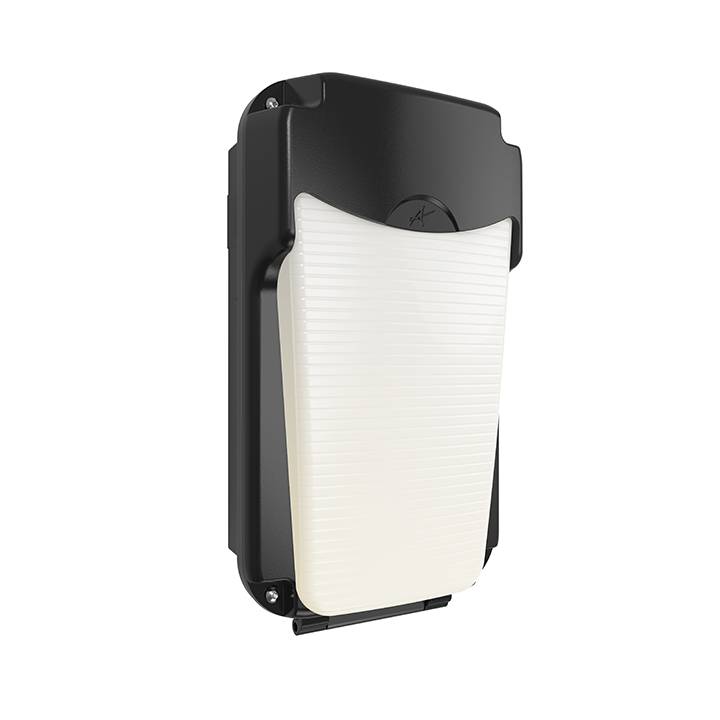

A Robust and compact wall mounted die-cast aluminium luminaire with Fresnel lens, tamper-proof allen key screws and a downward beam angle of 60°. Multiple conduit and BESA box entry with hinged front face for quick install. Photocell/sensor options. Ideal for education, commercial, industrial applications.

Where to buy Got a question?

Options

Emergency
OCTO Smart Control
Dimmable
Microwave Sensor

Specification

Input

220/240V

Hertz

50/60Hz

Temp

0°C to 25°C

Lifetime

L70 60,000h

CRI

80

SDCM

6

Beam Angle

25/75

Class

1

IP Rating

IP65

IK Rating

IK08

Features

  • Robust wall mounted luminaire for general accent illumination and suitable for education, commercial, industrial applications
  • Integral emergency option provides downward illumination with a beam angle of 60°
  • Die-cast aluminium body with vandal resistant polycarbonate Fresnel lens diffuser
  • Tamper-proof allen key screws supplied as standard
  • Multiple conduit entry and BESA box fixing points
  • Photocell and sensor options
  • Powered by Tridonic
  • Photocell functionality only available if ordered in conjunction with MWS

Variants

Ready to buy the

Lynx

Find a local stockist or ask our technical team a question using the links below.

Where to buy Got a question?
