Code: APRILED/**

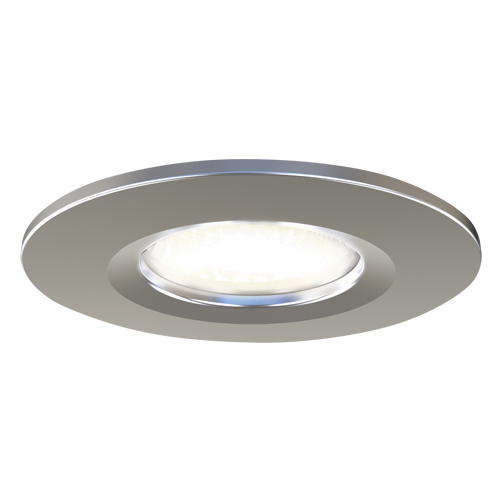

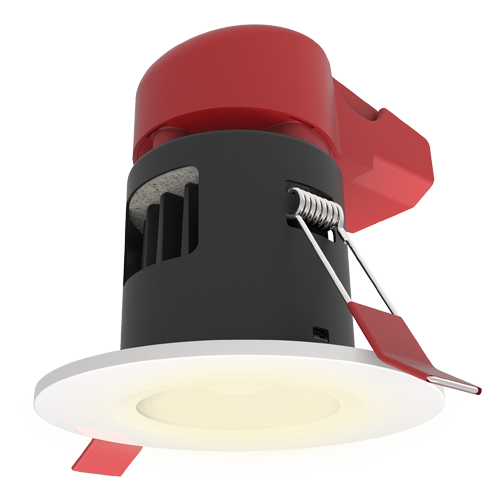

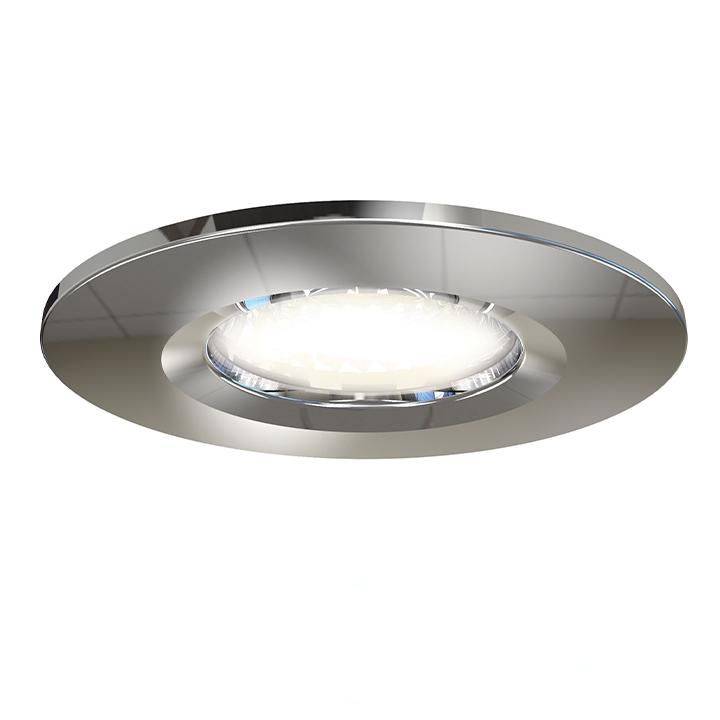

Prism Fire Rated

Downlights

LED fire rated downlight, withl integral driver and push-fit loop-in, loop-out terminals for ease of installation. High efficiency driver and precision optics. Tested and fully compliant to Building regulations 30/60/90 min all ceiling types. Ideal in residential and hospitality applications.

Where to buy Got a question?

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-5°C to 25°C

Lifetime

L70 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

IP65 LED dimmable fire-rated performance downlight suitable for residential applications
Supplied with matt white bezel as standard
Fully tested to meet Part C (moisture) and Part E (acoustic) of Building Regulations
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Integral driver with push-fit loop-in, loop-out terminals for ease and speed of installation
Wide 60° beam angle for increased light distribution

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
