Code: APRILEDP/AG/OCTOW

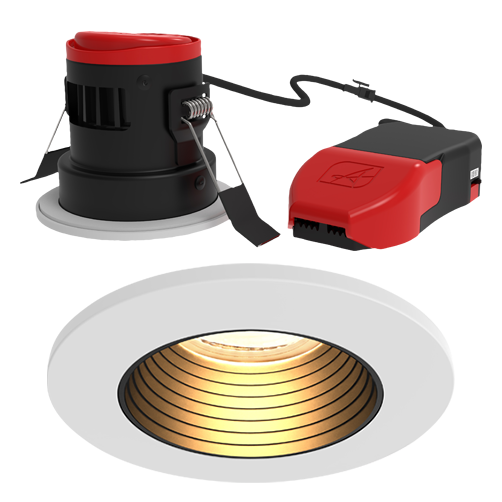

OCTO Prism Pro Anti-Glare FRD Connected by WiZ

Smart Lighting

Anti-Glare, IP65 recessed LED fire rated downlight, high efficiency driver and precision optics, and matt white bezel. Dimmable and colour tunable 2700-6000K via WiZ App and voice control. Tested 30/60/90 min all ceiling types to Building Regs, Part B. Ideal for residential and hospitality.

Where to buy Got a question?

Options

Dimmable

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-5°C to 25°C

Lifetime

L70 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

IP65 Dimmable LED WiZ enabled tunable white Fire Rated Anti-Glare Downlight suitable for residential and commercial applications
Supplied with matt white bezel as standard
Anti-glare design to create visual comfort
Tunable between 2700K - 6000K via Wiz App and voice control
Remote driver with 2x1.5mm² + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
Detachable LED driver for fast fix install
Low profile design and remote driver allow installation into shallow ceiling voids
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations

Downloads

Datasheet

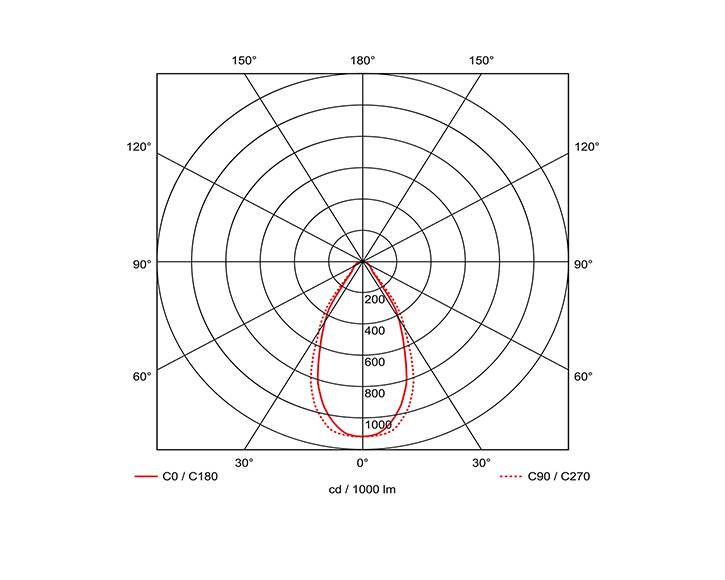

Photometric (PDF)

Photometric (IES/LDT)

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: For dwellings, fixed lighting should be installed with controls being either manual, automatic or a combination of both, however for buildings other than dwellings, fixed lighting should achieve levels of illumination appropriate to the activity and the use of lighting controls should be such that unoccupied spaces have automatic controls to turn the general lighting off when the space is not in use, and occupied spaces should have automatic controls suitable for the space, during normal usage.

Read more in our blog.
: When installing materials into a building against the potential risk of fire, there is a requirement to look at ‘Fire Reaction’ and ‘Fire Resistance’.

Fire Reaction constitutes a testing and classification process to determine the reaction to fire of building construction materials and in their contribution to the growth of a fire within a building.

Fire Resistance is an important and detailed requirement for buildings where fire resistance is expressed as the number of minutes of time duration where the building material and/or its component has the ability to withstand and resist the effects caused and result from a fire.

Read more in our blog.
