Code: A/3ULEDS3/*

Three Circuit Unity 3 Mains

Track Lighting

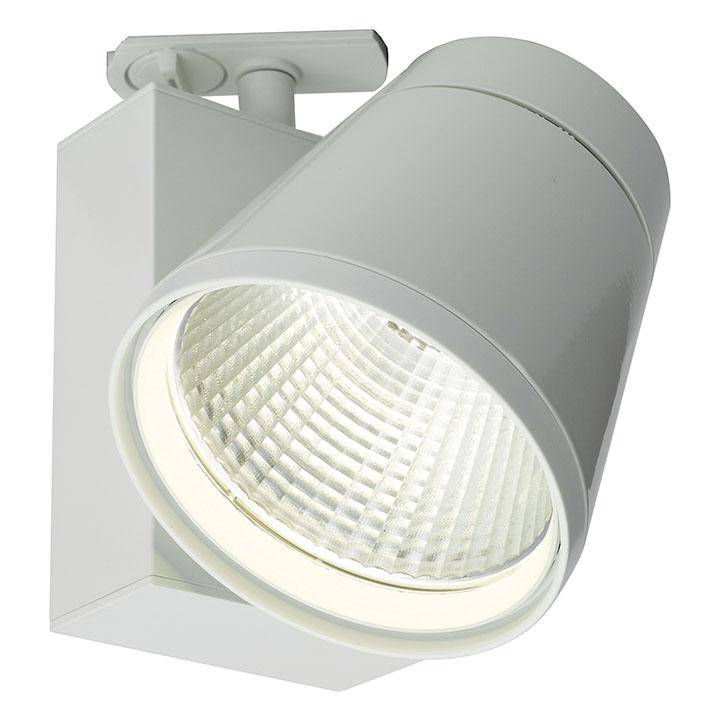

Compact LED track spot and integral non-dimmable driver and functionality for multi-circuit installations with 355° rotation and 0-180° tilt on the bracket. Mirror finish anodized reflector for optimum efficiency and anti-glare design for uniformity and visual comfort. Ideal for residential, hospitality and retail.

Where to buy Got a question?

Options

Dimmable

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-20°C to 25°C

Lifetime

L80 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP20

Features

Compact LED trackspot with integral driver suitable for residential, hospitality and retail applications
Three circuit functionality allows for installations with multi-circuit requirement
355° rotation with 0-180° tilt on the bracket

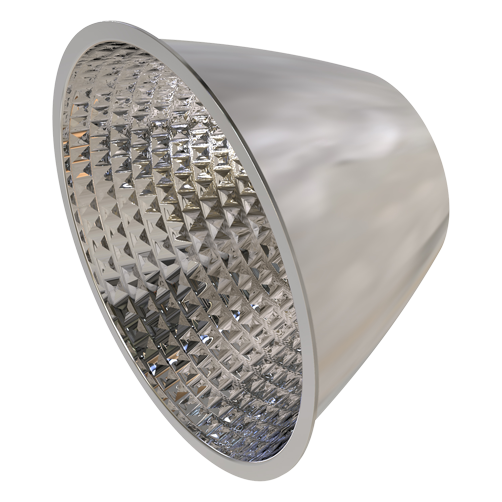

Mirror finish anodized reflector
Anti-glare design to create visual comfort
Non-dimmable

Variants

Related Case Study

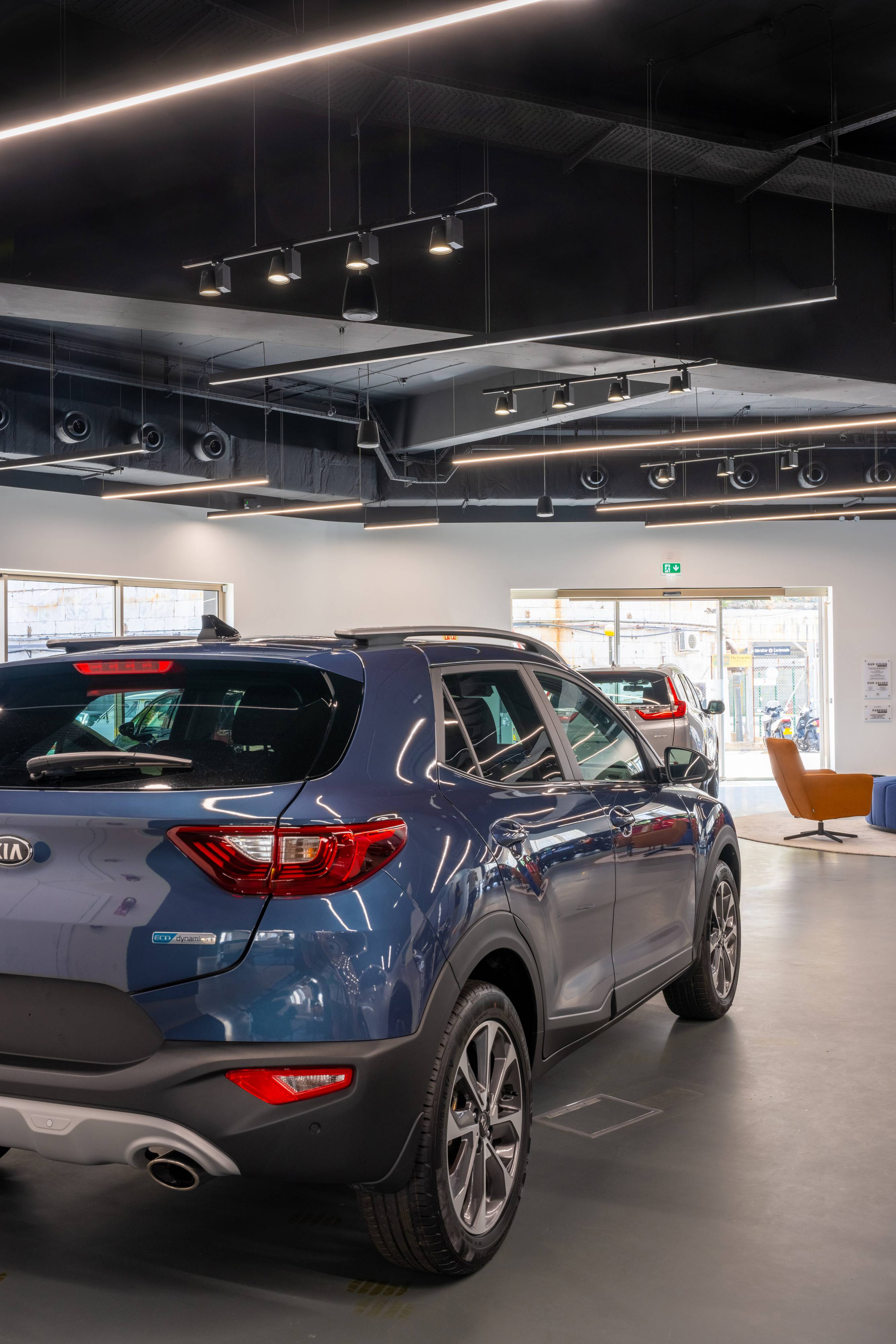

Bassadone Auto World

Unrivalled customer experience. Made possible by Ansell Lighting.

Learn more

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Track mounted lighting equipment is immensely popular and has been used to offer flexibility in highlighting featured objects within many types of environments.

There is two options, Mains Voltage (230Volt) track system which has a mains supply directly into the Live End of the track or a Low Voltage track system which has a reduced voltage supply to the track, such as 24 Volts, with the electrical supply from the mains being operated through a 24 Volt Constant Voltage Non-Dimmable LED Driver positioned remotely.

The greatest benefit from track lighting is that it offers adaptability and flexibility of the system to meet the specific needs of the customer at any time without having to call an electrical contractor to undertake this for you.

Read more in our blog.
