Code: AZLL*/***

Z LED Performance Linear

High/Low Bay

Durable IP65 surface-mounted linear high bay for industrial use. Selectable CCT: 4000K/5000K/6500K & 4 power options. Die-cast aluminium for thermal efficiency & extended LED life. Plug-and-play emergency pack & Zhaga 18 sensor mount. Narrow 90° lens accessory available.

Where to buy Got a question? Relux Calculator

Options

Emergency (Self Test)

Emergency

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-30°C - 50°C

CRI

SDCM

Beam Angle

90, 120

Class

IP Rating

IP65

IK Rating

IK10

Features

Powerful and durable surface mounted IP65 linear high bay, perfect for the demands of industrial applications
CCT selectable between 4000K/5000K and 6500K and power selectable between 3 options
High quality die-cast aluminium construction for optimal thermal performance and increased LED lifespan.
Plug-and-play Hawk emergency pack enables quick conversion from standard to emergency high bay
Zhaga 18 Mount for Plug-and-play microwave and PIR sensors (0/1-10V compatable).
Narrow beam 90° open area lens accessory available

Variants

Related Accessories

Sensor Remote Programmer

Zhaga IP65 OCTO Casambi Module

Zhaga IP65 Microwave Sensor

Zhaga IP65 PIR Sensor

Zhaga IP65 PIR OCTO Sensor

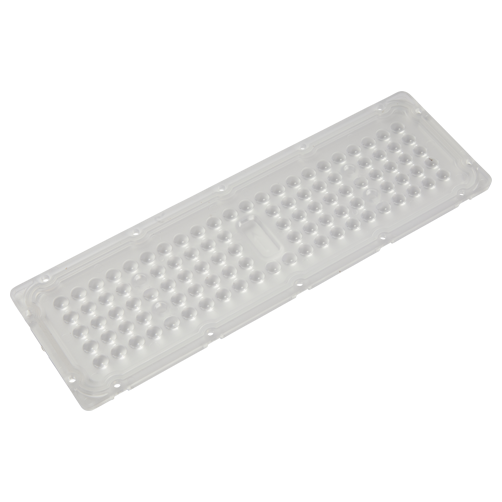

Z LED Performance Linear 90 Open Area Lens

Z LED Performance Linear Surface Mount Kit

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
