Code: AZPELED/*

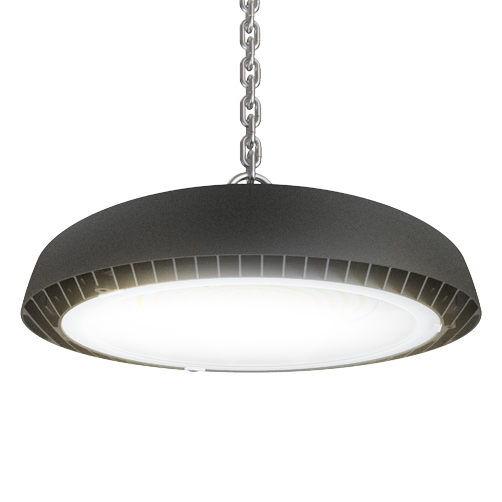

Z LED Performance

High/Low Bay

Z LED Performance offers is an IP65 robust die-cast powder coated, 1-10Volt dimmable LED high bay with heatsink for optimum thermal transfer and performance with lens options offering 85° and 55° beam angles making this ideal for open areas and racking aisles in industrial, commercial, and retail applications.

Where to buy Got a question?

Options

Emergency

OCTO Smart Control

Dimmable

Microwave Sensor

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-30°C - 45°C, 0°C - 45°C

Lifetime

L80 54,000h

CRI

SDCM

Beam Angle

110

Class

IP Rating

IP65

IK Rating

IK08

Features

Robust LED low/high bay for industrial, commercial and retail applications
Die-cast powder coated construction and heatsink for optimum thermals and performance
Alternative installation options by means of drop rods, jack chain and catenary wire
Additional lens options offer mid (85°) and narrow (55°) beam angles; ideal for racking aisles
Bracket accessories available for ceiling or wall mounting
Pre-wired with 1.5M of H07RN-F cable for ease and speed of installation
1-10V dimmable as standard

Variants

Related Case Study

TDC Glass Company Manufacturing Facility

Manufacturing facility gets lighting upgrade

Learn more

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: The 3 Highbay and single Lowbay variances, encompass 15 different wattage and lamp colour options of luminaire selection across the range, and with the various additional dimming, lighting control, emergency, and sensor options, as well as a range of reflector, lens, and mounting bracket assemblies, this makes this an extensive range, which presents the specifier with the opportunity to select the optimum fitting solution for their particular application.

Read more in our blog.
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
