Code: AHPTLED/*

Helix

Street Lights
External 5 Pole Dark Sky Compliant

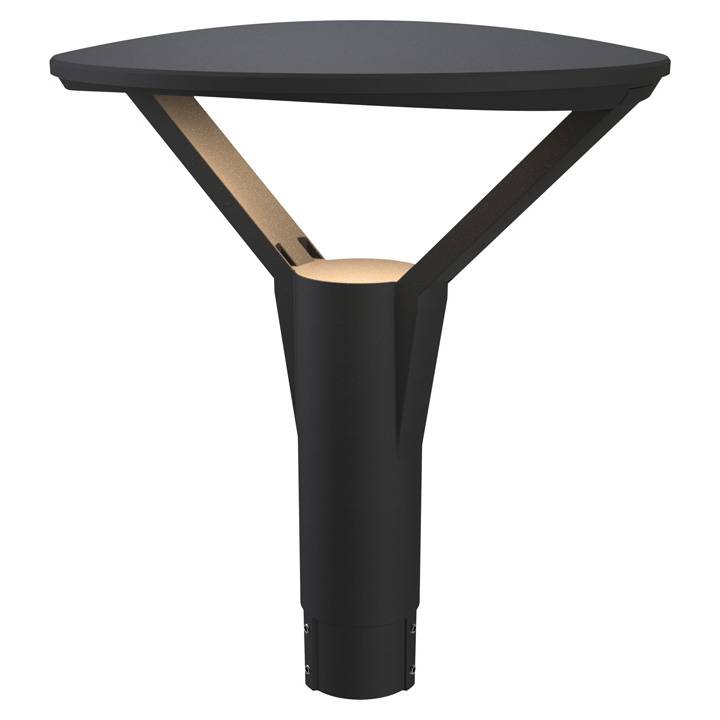

A modern die-cast aluminium post top lantern with electrostatic paint finish for enhanced corrosion resistance. Selectable CCT 3000K/4000K. 76mm spigot bracket supplied. Ideal for residential and commercial use as well as for large carparks and open areas.

Where to buy Got a question?

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-30°C - 50°C

Lifetime

L80 100,000h

CRI

70

SDCM

4

Beam Angle

145

Class

1

IP Rating

IP66

IK Rating

IK08

Features

  • Modern die-cast aluminium post top lantern Ideal for large carparks and large open areas
  • CCT selectable between 3000K and 4000K
  • Electrostatic paint finish for enhanced corrosion resistance
  • Advanced lens technology providing optimum performance and control.
  • Suitable for residential and commercial use
  • 76mm spigot bracket
