Code: AFBLLED

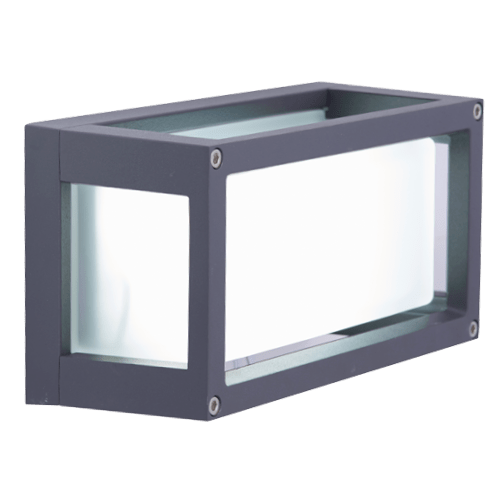

Fidenza Bricklight

Feature Lighting

Recessed bricklight light suitable for commercial and residential applications

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 25°C

CRI

SDCM

Beam Angle

80/95

Class

IP Rating

IP65

IK Rating

IK02

Features

Recessed bricklight light suitable for commercial and residential applications
Die-cast aluminium housing and front cover
Toughened front frosted glass
Metal back box with cable entries for ease of installation

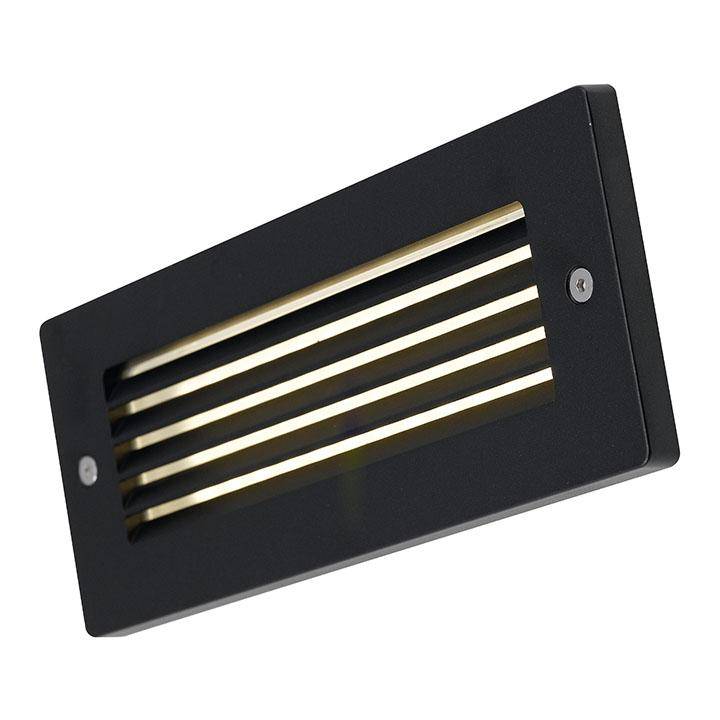

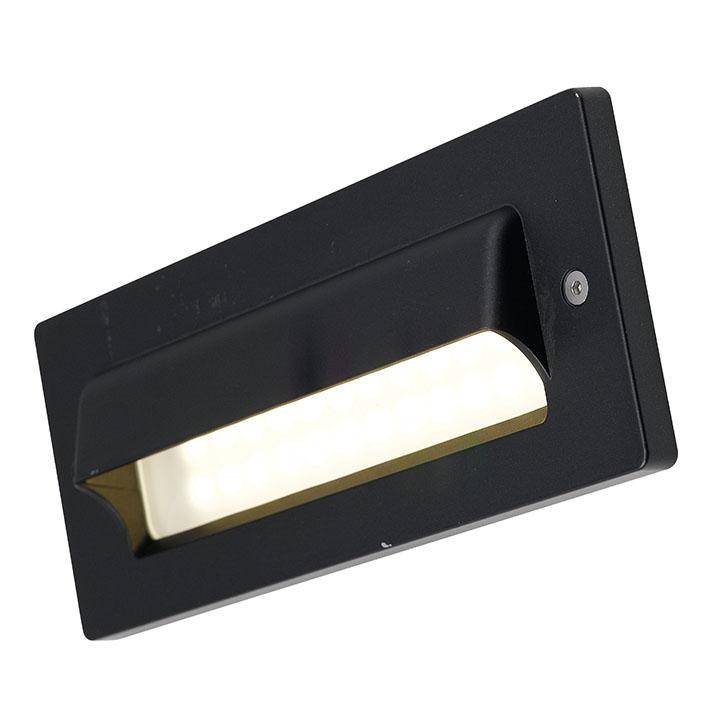

Optional grill and hood front covers
CCT selectable between 3000K and 4000K
Non-dimmable

Downloads

Datasheet

Instructions

Photometric (PDF)

Photometric (IES/LDT)

Declaration of conformity

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
