Avio Bollard

Bollards

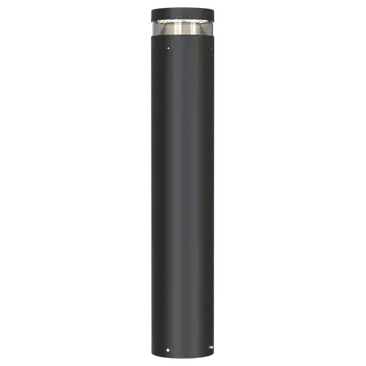

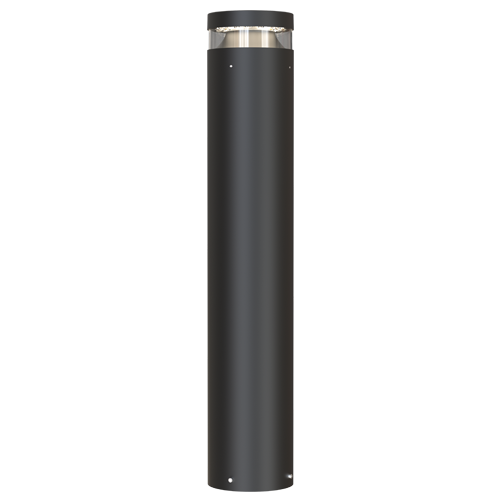

Robust die-cast aluminium bollard. CCT selectable between 3000K and 4000K and power selectable; offering a choice of 4 outputs, in one luminaire. Half-shield lens option to offer single direction output.

Where to buy Got a question?

Options

Emergency (Self Test)

Emergency

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-30°C - 50°C

Lifetime

L80 60,000h

CRI

SDCM

Beam Angle

140

Class

IP Rating

IP66

IK Rating

IK08

Features

Robust die-cast aluminium bollard with a choice of textured finishes suitable for commercial applications
CCT selectable between 3000K and 4000K and power selectable; offering a choice of 4 outputs, in one luminaire

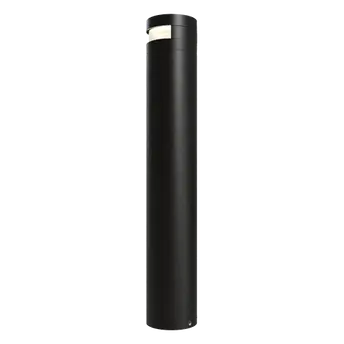

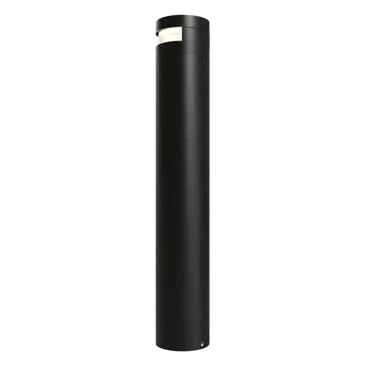

Half-shield lens option to offer single direction output
Precision-engineered lensed optic delivers exceptional light distribution and performance, ensuring maximum efficiency and visual comfort

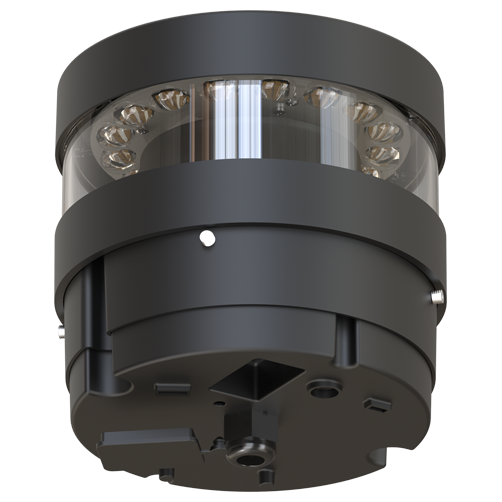

Removable head design allows easy access to the integrated CCT and wattage switches, seamlessly housed within the head for quick adjustments and enhanced convenience during installation or maintenance

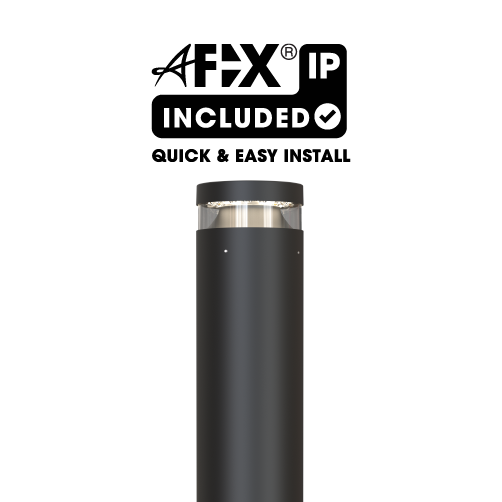

Comes complete with a AFIX connector (AFIXIP/1/SC/3C) for quick and easy IP rated connection
Supplied c/w base plate, root mounting kit accessory available

Variants

FAQ

: Reduces light spill and glare for cleaner, more effective illumination

Improves nighttime visibility without harsh brightness

Protects nocturnal wildlife by limiting disruption to natural habitats

Boosts efficiency by focusing light exactly where it’s needed, saving energy
: Our luminaires feature a warm colour temperature (3000K or less) to minimise blue light scatter—one of the main causes of sky glow. All light is precisely directed into the intended area, improving visibility while preventing wasted light that would otherwise brighten the night sky unnecessarily.
: Night-Sky Friendly lighting is designed to minimise glare and prevent light pollution. Using advanced optics, it delivers Zero Upward Light Output (ULOR = 0%) so no light is emitted above 90° from nadir, completely eliminating upward spill and protecting our view of the night sky.
: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
