Eden

Floodlights

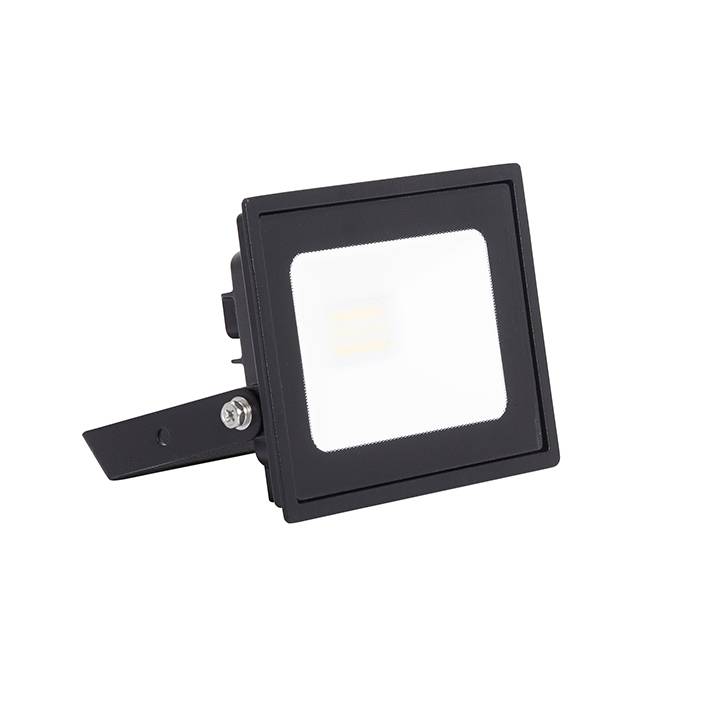

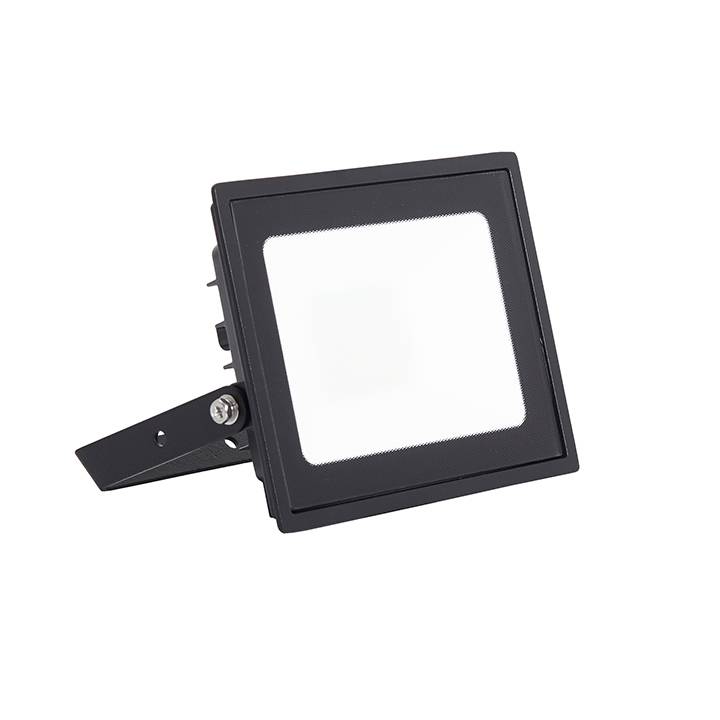

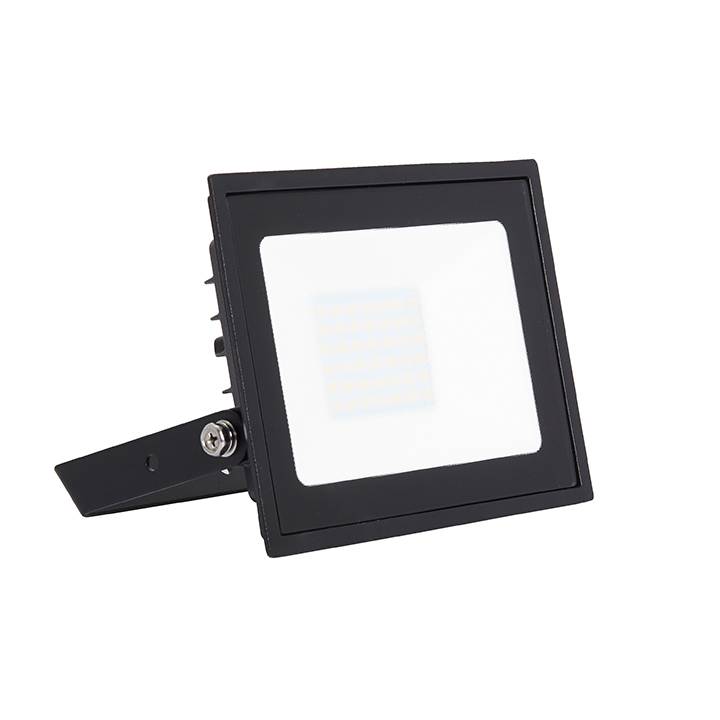

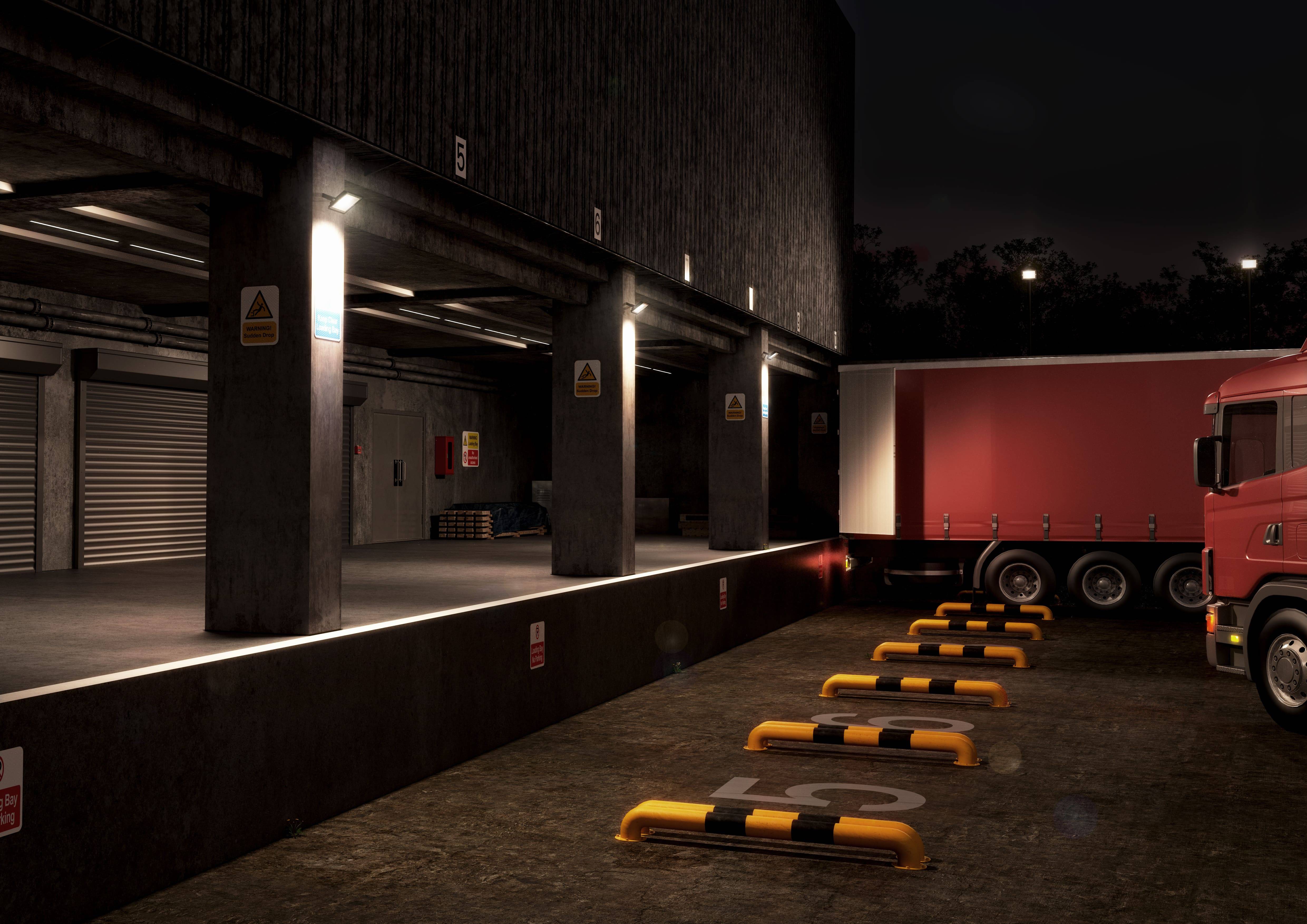

Compact economic polycarbonate LED floodlight, textured polycarbonate finish and polished faceted reflector. Bracket design allows installation without LED removal and is pre-wired with 1m of rubber insulated cable. PIR versions with manual override. Ideal for semi-commercial settings.

Where to buy Got a question?

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 40°C

Lifetime

L80 50,000h

CRI

SDCM

Beam Angle

110

Class

IP Rating

IP44, IP65

IK Rating

IK06

Features

Compact and economic aluminium LED floodlight suitable for semi commercial applications

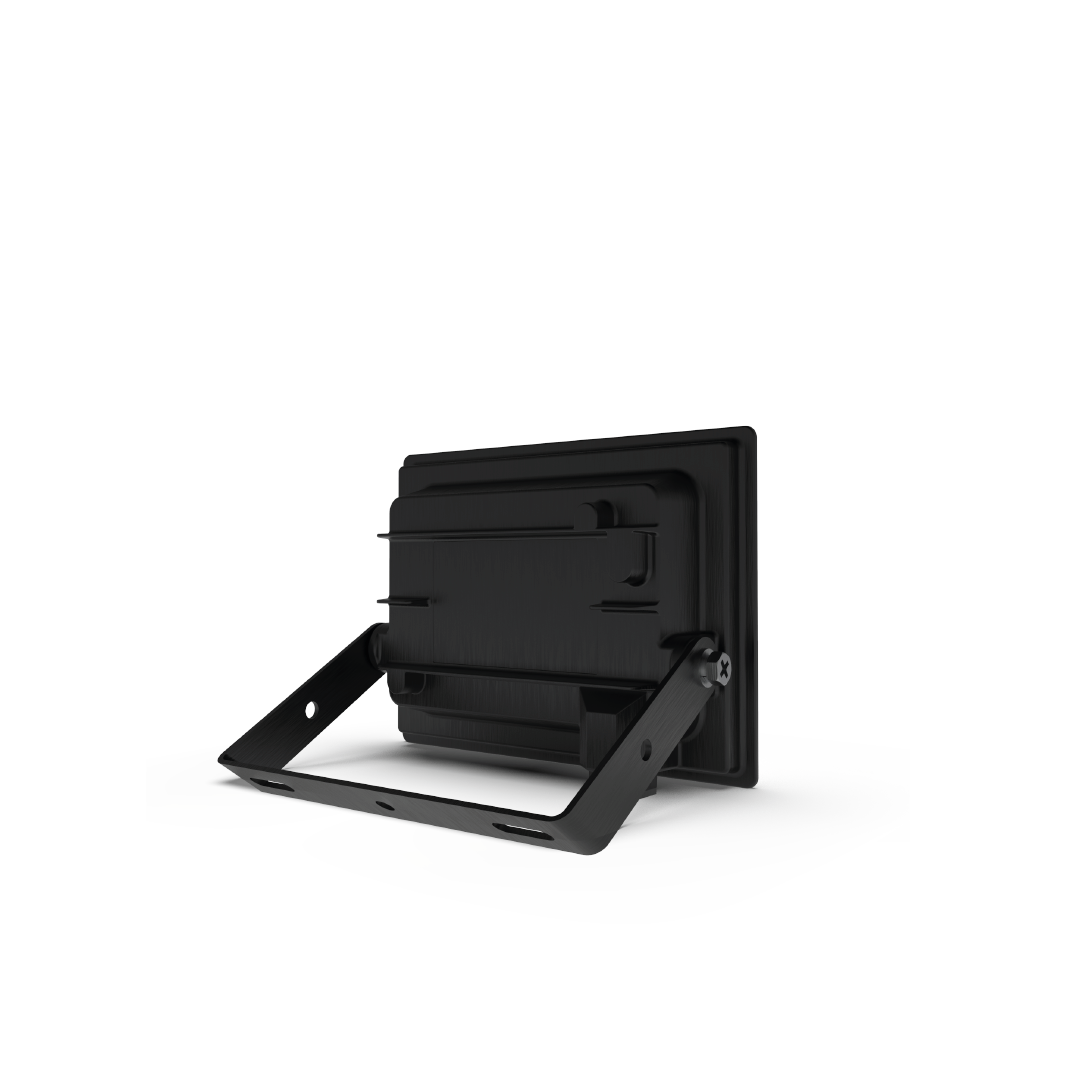

Bracket design allows installation without removing mounting bracket

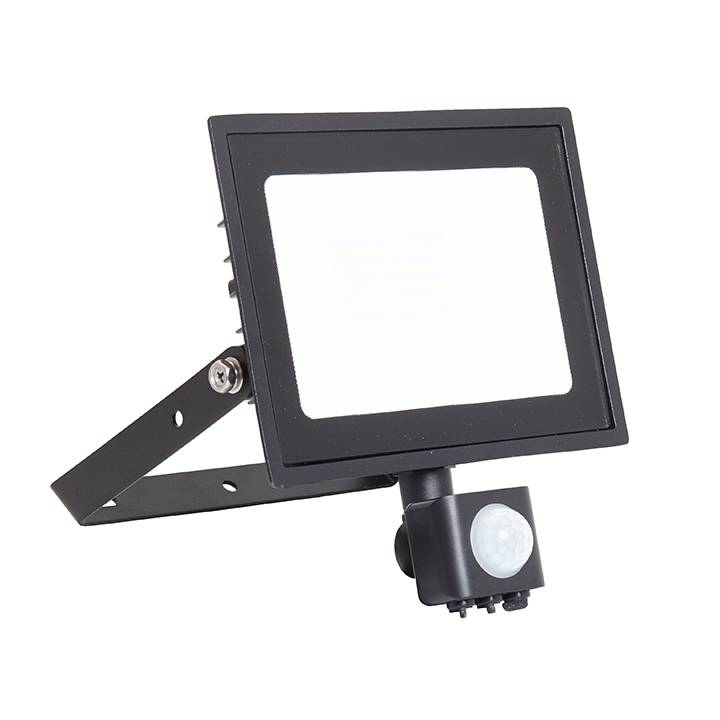

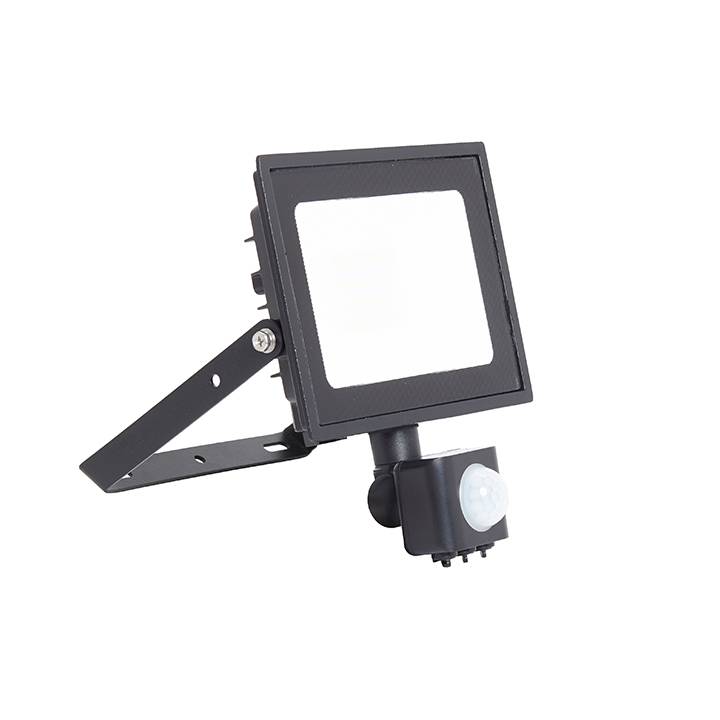

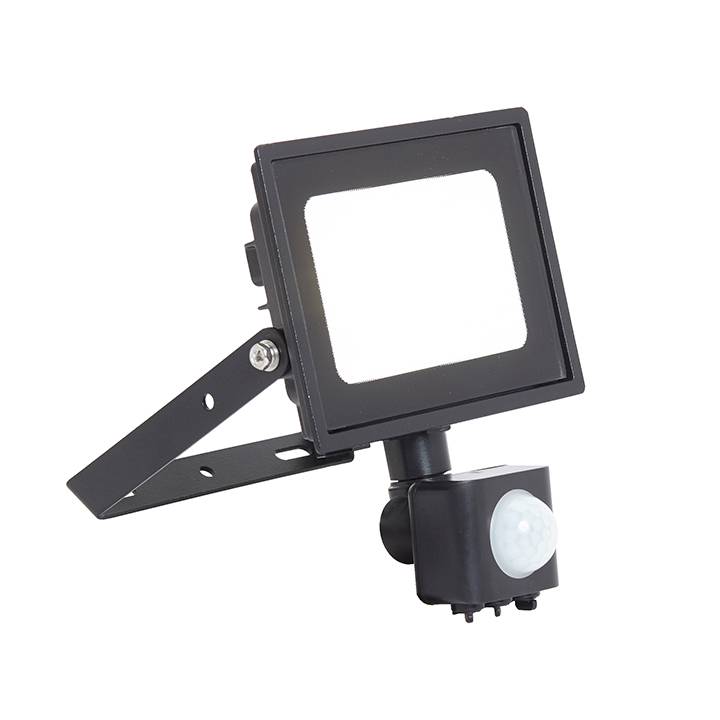

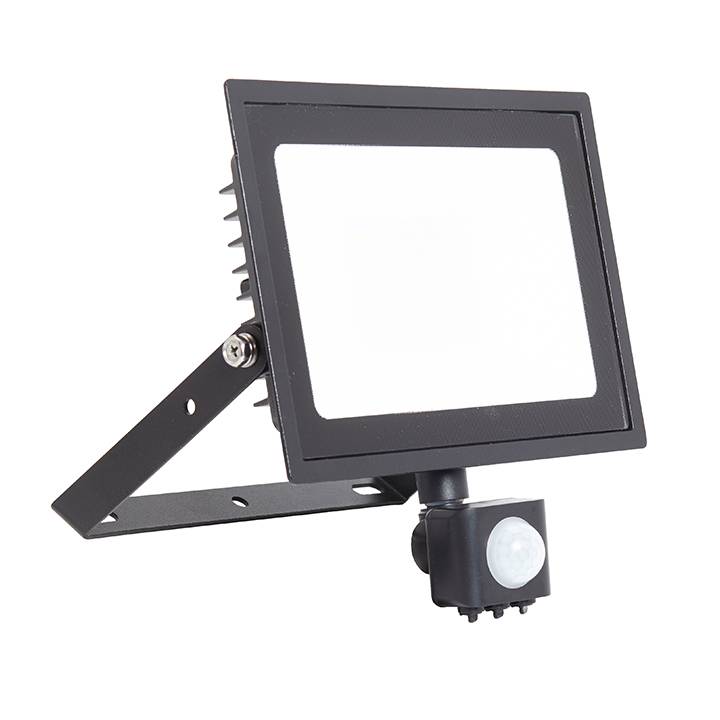

PIR versions complete with manual override facility (10W-50W only)
Pre-wired with 1 metre of rubber insulated cable for ease of installation
Polycarbonate spike accessory allowing installation into lawn and garden applications (10W-30W only)
Non-dimmable

Variants

Inspiration

Aztec Coastal 200W - Floodlight

Related Accessories

Zion Floodlight Spike Accessory

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
