Code: AEFRD/TRIM

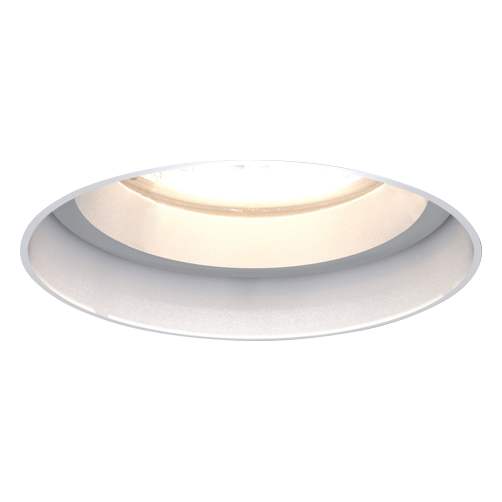

Edge – Trimless IP65

Downlights

Trimless plaster-in GU10 fire rated downlight suitable for residential and commercial applications (product supplied less lamp)

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

0°C - 25°C

Class

IP Rating

IP65

IK Rating

IK06

Features

Dedicated trimless plaster in downlight.
Modern installation method providing an architectural and modern appearance
Steep baffle construction recesses the downlight providing a deep cut-off angle ensuring maximum glare control and visual comfort
Pre-drilled screw holes ensure a quick and easy installation
Suitable for standard GU10 halogen or LED lamps
Push fit terminals for fast loop-in, loop-out wiring
Twistlock lamp retaining ring for ease of lamp replacement
Option to add Bluetooth and WiFi enabled smart WiZ GU10 lamp

Downloads

Datasheet

Instructions

Declaration of conformity

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
