Code: AGAB*/*

Gabbro

Street Lights

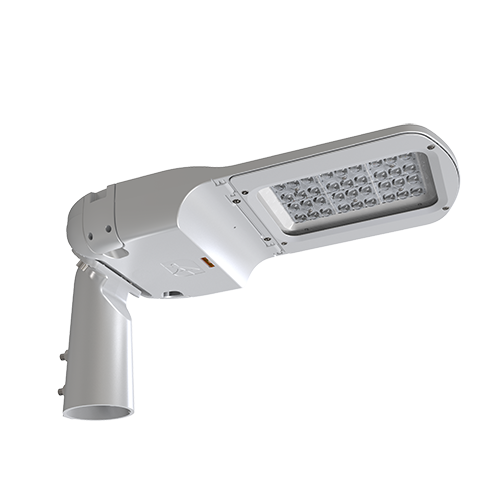

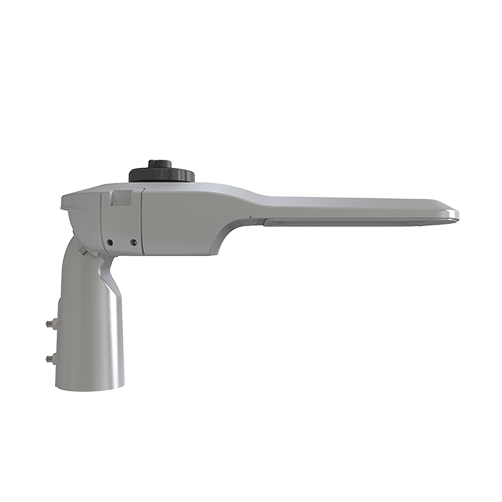

Modern die-cast aluminium street light with selectable CCT between 3000K and 4000K and power selectable; offering a choice of up to 3 outputs, in one luminaire. 30° head tilt (15° up or down from horizontal) allows for a wider or more narrow light distribution.

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 50°C

Lifetime

L80 96000h

CRI

SDCM

Beam Angle

60/120

Class

IP Rating

IP66

IK Rating

IK08

Features

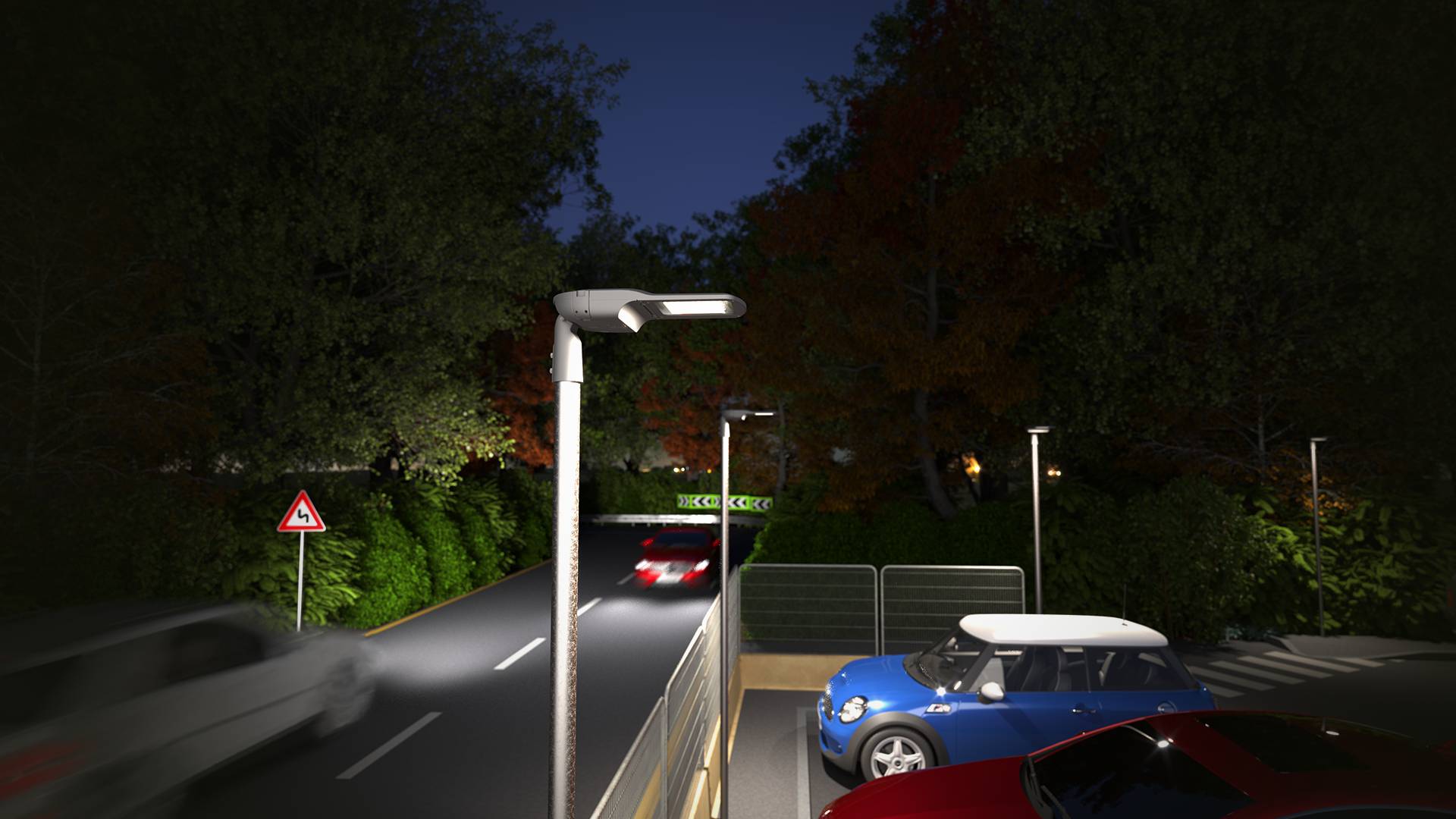

Modern die-cast aluminium street light ideal for carparks and large open areas
CCT selectable between 3000K, 4000K and 5000K and power selectable; offering a choice of up to 3 outputs, in one luminaire
30° head tilt (15° up or down from horizontal) allows for a wider or more narrow light distribution

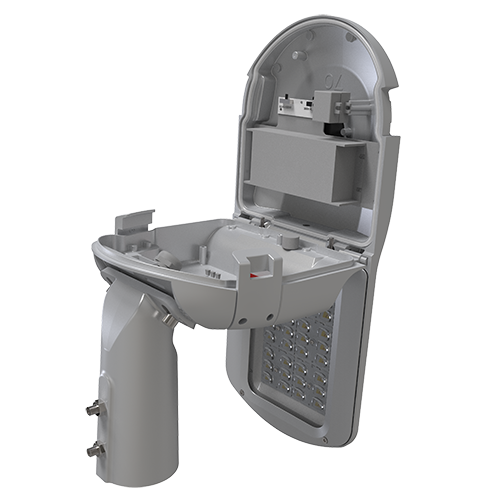

Die-cast aluminium construction and breather gland for optimal heat dissipation and performance

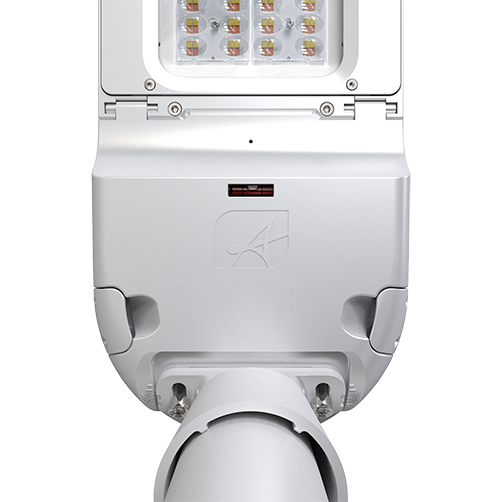

Integrated spirit level for easy levelling during installation

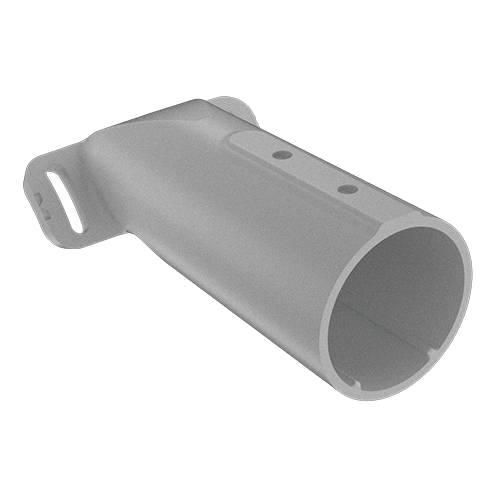

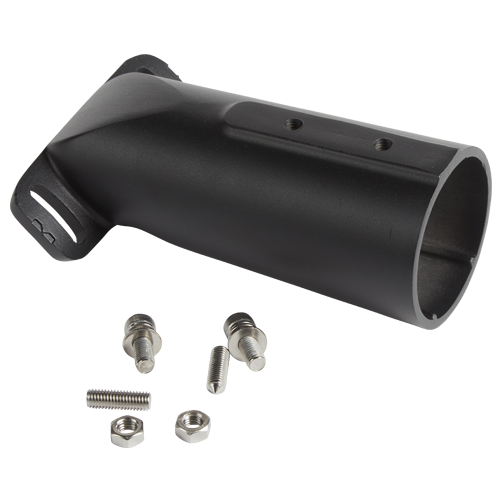

Compatible with post top or side entry utility 76mm spigot
10kV Surge protection

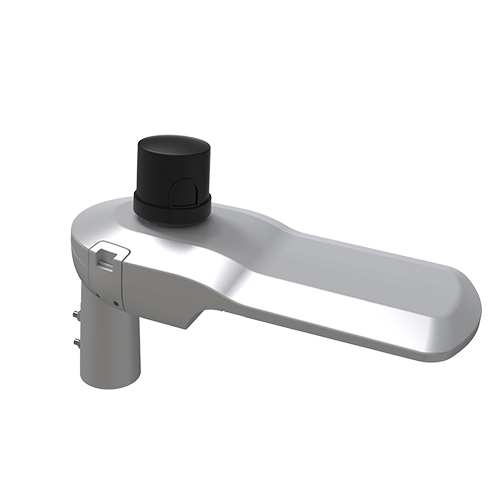

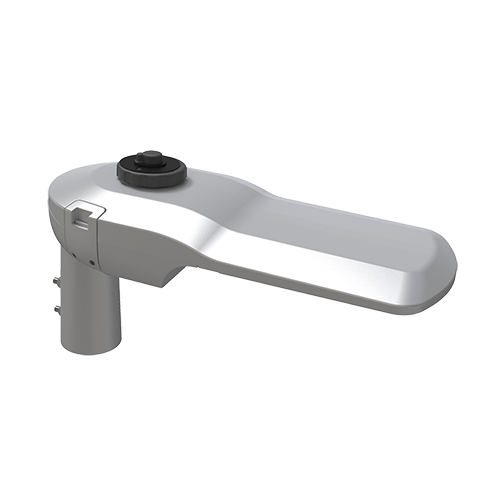

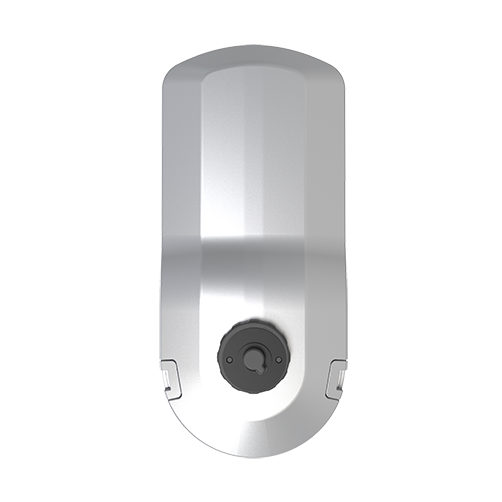

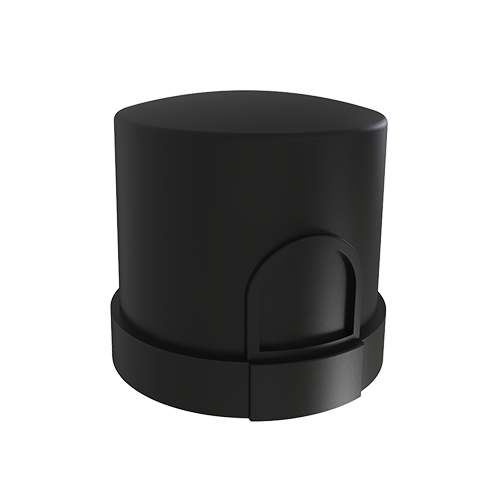

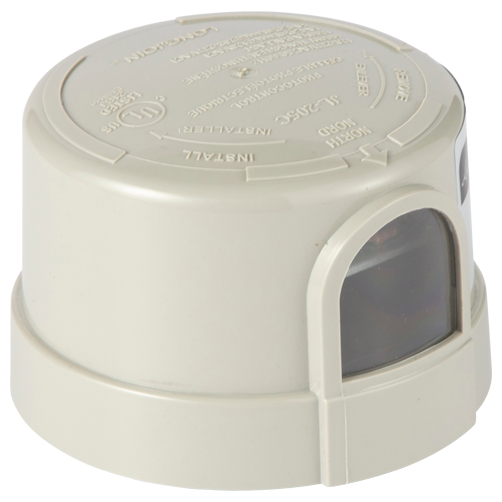

NEMA socket as standard for photocell accessory
Comes complete with a AFIX connector (AFIXIP/1/SC/3C) for quick and easy IP rated connection

Variants

Related Case Study

Upgrading a Car Park with the Gabbro Streetlight and Photocell Accessory

Ansell Lighting’s Gabbro Streetlight, enhanced with a NEMA photocell accessory, transformed a busy car park into a safer, smarter and more energy-efficient environment with tailored illumination and effortless installation.

Learn more

FAQ

: Reduces light spill and glare for cleaner, more effective illumination

Improves nighttime visibility without harsh brightness

Protects nocturnal wildlife by limiting disruption to natural habitats

Boosts efficiency by focusing light exactly where it’s needed, saving energy
: Our luminaires feature a warm colour temperature (3000K or less) to minimise blue light scatter—one of the main causes of sky glow. All light is precisely directed into the intended area, improving visibility while preventing wasted light that would otherwise brighten the night sky unnecessarily.
: Night-Sky Friendly lighting is designed to minimise glare and prevent light pollution. Using advanced optics, it delivers Zero Upward Light Output (ULOR = 0%) so no light is emitted above 90° from nadir, completely eliminating upward spill and protecting our view of the night sky.
