Code: AGALED/*

Galaxy

Downlights

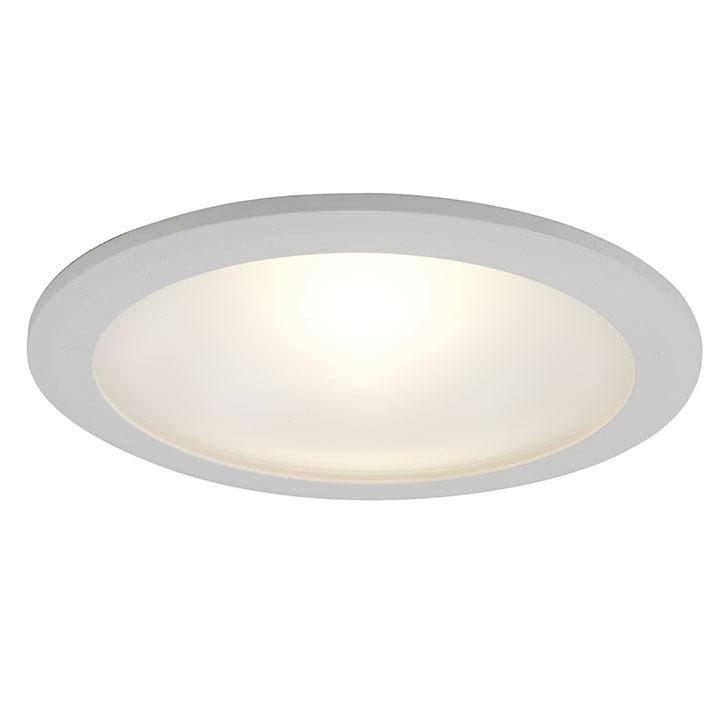

Multi-wattage compact high performance IP65 LED downlight with faceted reflector for excellent uniformity and glare control. Removable twist bezel for other bezel and drop glass. Fitting and driver pre-wired with ST18 connector. Ideal for education, commercial and healthcare applications.

Where to buy Got a question?

Options

Emergency (Self Test)

Emergency

OCTO Smart Control

Dimmable

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-20°C - 35°C, 0°C - 35°C

Lifetime

L80 36,000h

CRI

SDCM

Beam Angle

100

Class

IP Rating

IP65

IK Rating

IK06

Features

Multi-wattage compact IP65 LED performance downlight suitable for education, commercial and healthcare applications
Cut-out dimensions suitable to replace most PLC downlights
Fitting and driver pre-wired with ST18 connectors
Faceted reflector and optical fresnel lens provides outstanding performance, uniformity and glare control
Removable twist on, twist off bezel provides option of utilising alternative bezel and drop glass accessories
Dimmable and Emergency options
Powered by Philips

Variants

Related Case Study

Peugeot Dealership

Learn more

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
