Code: AGAMMINI/*

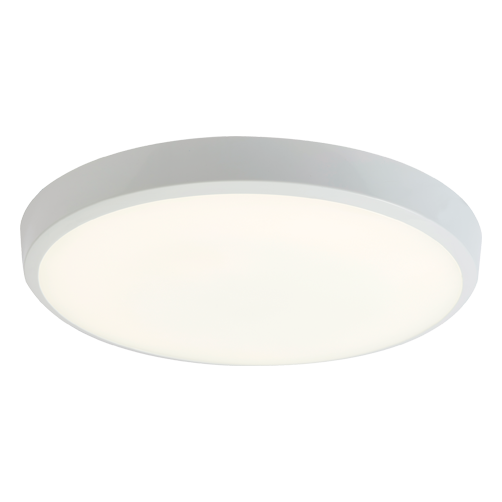

Gamma Mini

Bulkheads

Ultra slim modern polycarbonate wall/ceiling light with high efficiency up to 120lm/W. CCT selectable between 3000K, 4000K and 5000K and power selectable; offering a choice of 2 outputs, in one luminaire.

Where to buy Got a question?

Options

Emergency (Self Test)

Emergency

Microwave Sensor

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C to 40°C, 0°C to 40°C

Lifetime

L80 B10 50,000h

CRI

SDCM

Beam Angle

115

Class

IP Rating

IP65

IK Rating

IK08

Features

Ultra slim modern polycarbonate wall/ceiling light suitable for education, residential and ancillary applications
High efficiency up to 120lm/W
CCT selectable between 3000K, 4000K and 5000K and power selectable; offering a choice of 2 outputs, in one luminaire
Centralised loop-in, loop-out terminals with push button release feature ensures a quick and easy installation
Innovative hinged hatch compartment allows quick access to adjust microwave and emergency option settings
Additional profile channeling runs parallel to cable glands, allowing easy installation for applications where the cable runs across the ceiling
Satin Chrome and Black trim bezel accessories available
/MWS and /MWS/M3 versions operate as “Primary” and can be used in conjunction with standard “Secondary”
/MWS and MWS/M3 has integral photocell isolation switch
Non-dimmable
