Code: AMLWPLED/CCT/**

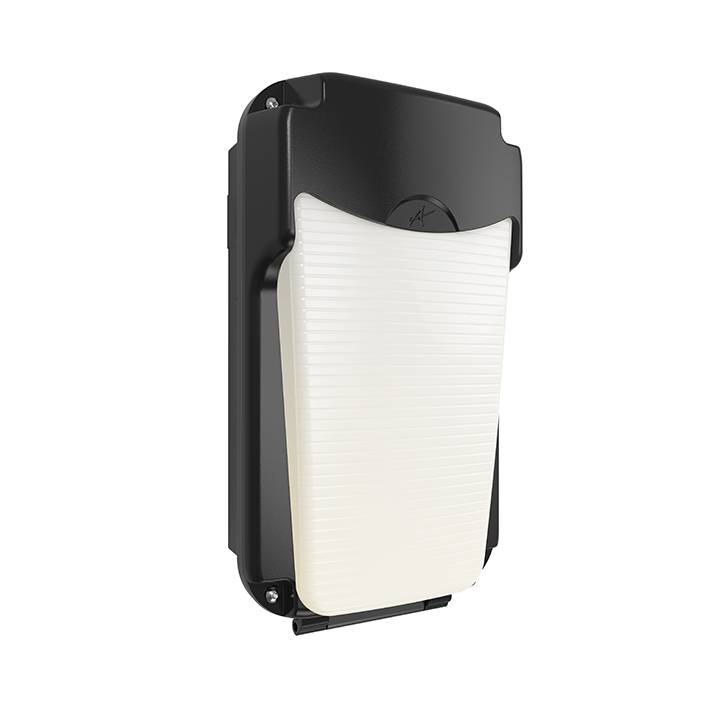

Lynx Mini

Bulkheads
External 5 Wall

A robust and compact wall mounted polycarbonate luminaire with Fresnel lens and tamper-proof allen key screws. Multiple conduit and BESA box entry with hinged front face for quick install. Selectable CCT 3000K/4000K and photocell/sensor options make it ideal for education, commercial, industrial applications.

Where to buy Got a question?

Options

Microwave Sensor
Photocell

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-10°C - 40°C

Lifetime

L70 60,000h

CRI

80

SDCM

6

Beam Angle

25/75

Class

2

IP Rating

IP65

IK Rating

IK08

Features

  • Robust compact wall mounted luminaire for general accent illumination and suitable for education, commercial, industrial applications
  • All polycarbonate vandal resistant body with fresnel lens
  • Tamper-proof allen key screws supplied as standard
  • Multiple conduit entry and BESA box fixing points
  • Hinged front face allows for a quick and easy installation
  • Selectable CCT between 3000K and 4000K output
  • Photocell and sensor options

Variants
