Code: AWOLF/*

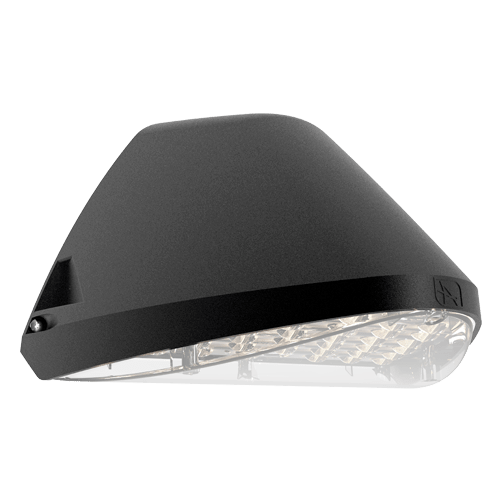

Wolf

Bulkheads

Modern, robust die-cast aluminium low glare wall pack, with electrostatic paint finish. The lens offers optimum distribution, spacing and uniformity, with <1% upward light for minimal light pollution. Power selectable 3 outputs and efficiency up to 140 Lm/W. Ideal for commercial and industrial environments

Where to buy Got a question?

Options

Emergency (Self Test)

Emergency

OCTO Smart Control

Dimmable

Microwave Sensor

Photocell

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 40°C, 0°C - 40°C

Lifetime

L80 84,000h

CRI

SDCM

Beam Angle

70/140

Class

IP Rating

IP65

IK Rating

IK10

Features

Modern, robust die-cast aluminium low glare wall pack suitable for commercial and industrial applications
Advanced lens technology offers wide distribution for optimum spacing and uniformity; whilst ensuring minimal uplight and light pollution
Reduced light pollution with 0% upward light distribution, helps with compliance with Dark Skies recommendations, helps with compliance with Dark Skies recommendations
Power selectable; offering a choice of 3 outputs, in one luminaire
High efficiency up to 120 Lm/W
Electrostatic paint finish for enhanced corrosion resistance
Multiple conduit entry and BESA fixing points
20mm East and West side entry for surface conduit and through-wire
Dimmable and Smart options available

Variants

FAQ

: The first point to get across is that lighting installed within the vicinity of a bat roost, which is deemed to cause disturbance to the bat or it’s roost, may constitute a legal offence.

Before installing any lighting equipment, and if it is known that a bat population is located, then the appropriate bat safety group should be consulted in order that they can assess the situation.

In considering the location of lighting fittings, the bat roost, as well as including the access points, should NOT be directly illuminated under any circumstances.

The design of lighting installation needs to be implemented with extreme care and this is best achieved by contacting a lighting designer at Ansell Lighting to assist in this process.

Read more in our blog article.
