Code: AMAD*

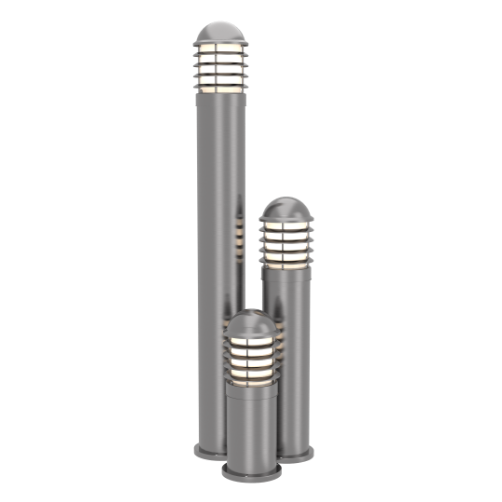

Madrid

Bollards

High Grade AISI 316L stainless steel bollard and die-cast extruded aluminium bollard suitable for residential, hospitality and commercial applications, supplied less lamp. Louvred head design and opal polycarbonate diffuser. With option to add Bluetooth and WiFi enabled smart A60 lamp.

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-10°C - 40°C

Class

IP Rating

IP44

IK Rating

IK05

Features

High Grade AISI 316L stainless steel bollard (AMAD**/1/SS) and die-cast extruded aluminium bollard (AMAD/**/1/B) suitable for residential, hospitality and commercial applications (supplied less lamp)
Textured black powder coat finish (AMAD/**/1/B only)
Louvred head design and opal polycarbonate diffuser
Option to add OCTO Connected by WiZ A60 smart lamp

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
