Code: AMATB**

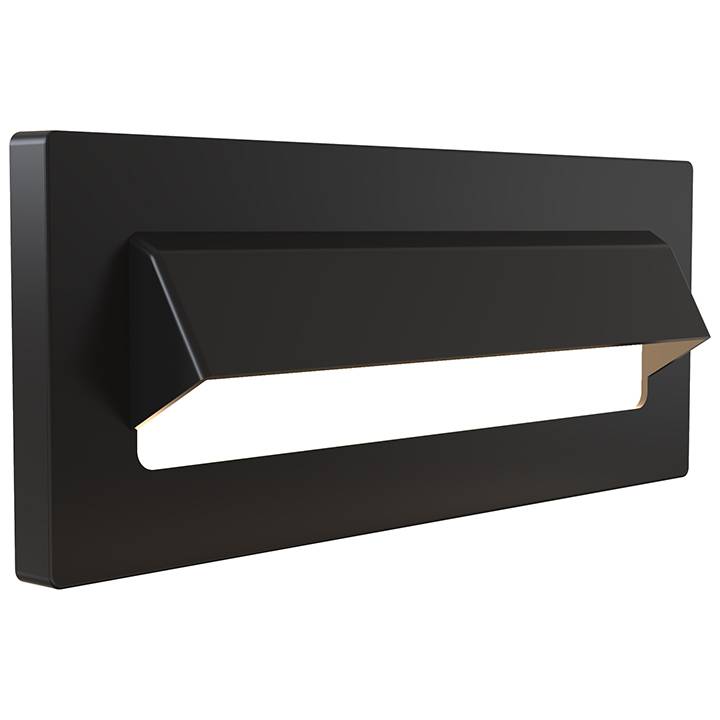

Mattone Bricklight CCT

Feature Lighting

Polycarbonate non-dimmable LED bricklight with adjustable feet for brick aperture installs. Housing for additional protection and easy install, pre-wired with 500mm of rubber insulated cable and plain frame or eyelid options. CCT selectable between 3000K and 4000K. Ideal for residential, hospitality and coastal.

Where to buy Got a question?

Options

Dimmable

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-10°C - 40°C

Lifetime

L70 36,000h, L70 54,000h

CRI

SDCM

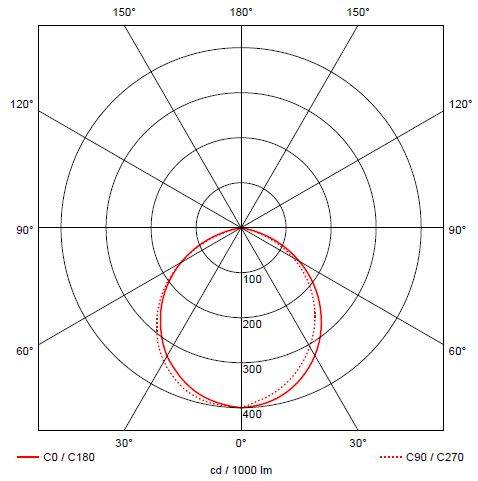

Beam Angle

100

Class

IP Rating

IP65

IK Rating

IK06

Features

Universal polycarbonate LED bricklight suitable for residential and hospitality applications
Plain frame or eyelid option in black and brushed chrome finishes

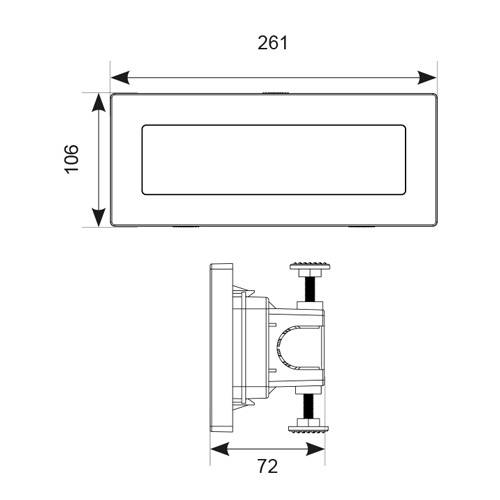

Unique adjustable feet allows for installation into multiple brick apertures ranging from 85mm to 115mm
Polycarbonate construction ideal for coastal applications
Pre-wired with 500mm of rubber insulated cable
Supplied c/w installation housing for additional protection and ease of installation
CCT selectable between 3000K and 4000K
Non-dimmable

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
