Code: AOCTOW/12-24V/DIM

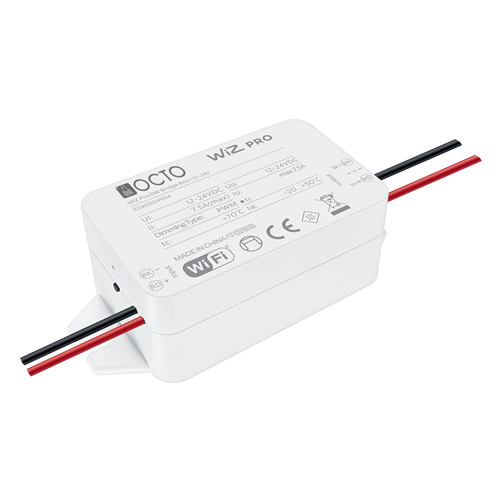

OCTO WiZ Connected 12-24V Dimmable Controller

Bluetooth and Wifi enabled smart controllers for use with LED strip suitable for residential and small-scale commercial applications

Where to buy Got a question?

Specification

Input

12/24V

Temp

-20°C - 45°C

Class

2

IP Rating

IP20

Features

Bluetooth and Wifi enabled smart controllers for use with LED strip suitable for residential and small-scale commercial applications
Connects directly to your WiFi network using Bluetooth technology to support seamless pairing
Commissioned via WiZ app
Voice activated compatibility; offers hands-free controls
12-24V Dimmable, RGB and tunable white versions; perfect for LED strip (maximum 7.5A)
220-240V Dimmable; perfect for triac dimmable downlights and other LED luminaires and LED light sources (maximum 150W)
1-10V Dimmable version for compatible analogue LED luminaires (maximum 300W)
Group, scene, holiday and timer settings achieved via WiZ app

Downloads

Declaration of conformity

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: For dwellings, fixed lighting should be installed with controls being either manual, automatic or a combination of both, however for buildings other than dwellings, fixed lighting should achieve levels of illumination appropriate to the activity and the use of lighting controls should be such that unoccupied spaces have automatic controls to turn the general lighting off when the space is not in use, and occupied spaces should have automatic controls suitable for the space, during normal usage.

Read more in our blog.
