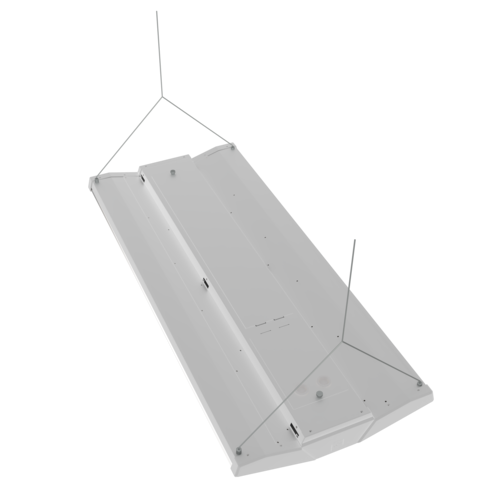

Opti-Lux Pro Linear Highbay

High/Low Bay

Versatile LED low bay delivers 150lm/W efficiency for warehouse-style retail and commercial spaces. Features an etched diffuser for glare-free illumination, CCT (3000K/4000K), and quick installation via rear access hatch with push-fit terminals. Includes Zhaga 18/1-10V dimming, plus 1.5m suspension and mount.

Where to buy Got a question? Relux Calculator

Options

Emergency (Self Test)

Emergency

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-30°C - 50°C, 0°C - 45°C

Lifetime

100,000 L80

CRI

SDCM

Beam Angle

110°, 120°

Class

IP Rating

IP20

IK Rating

IK06

Features

LED low bay suitable for retail and commercial applications

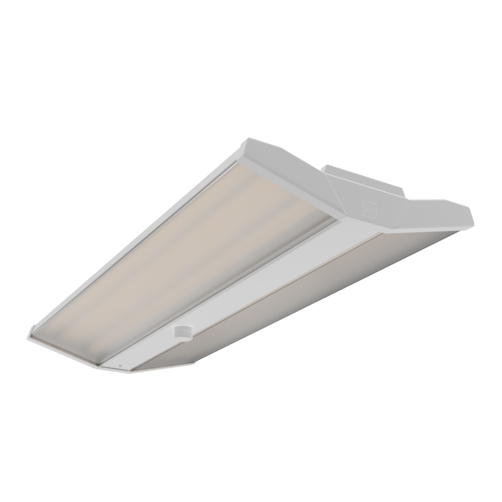

Aimed at the warehouse style retail market with etched diffusor for low glare output
4 x Power (150lm/W) and 2 x Colour Selectable (3000K/4000K)

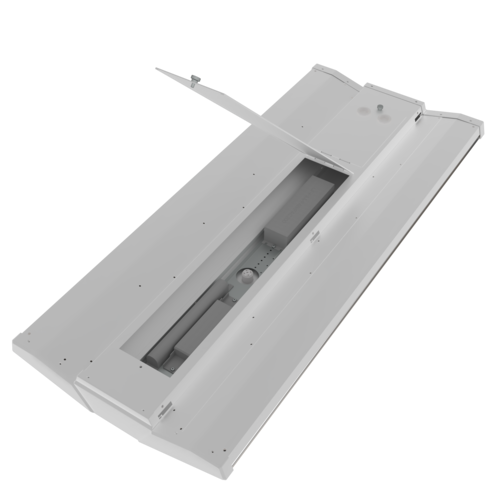

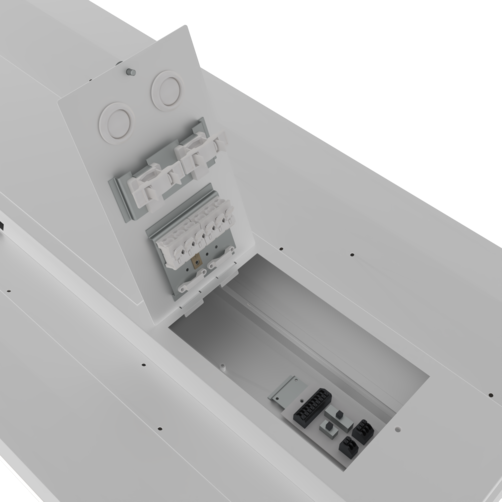

Fast install/wiring via access hatch on the back of the product with push fit terminals
Zhaga 18 socket or 1-10V dimmable operation
Supplied c/w 1.5 metre catenary suspension kit and surface mount bracket

Variants

Related Accessories

Zhaga IP65 OCTO Casambi Module

Zhaga IP65 Microwave Sensor

Zhaga IP65 PIR Sensor

Zhaga IP65 PIR OCTO Sensor

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
