Code: APRIPAG/*

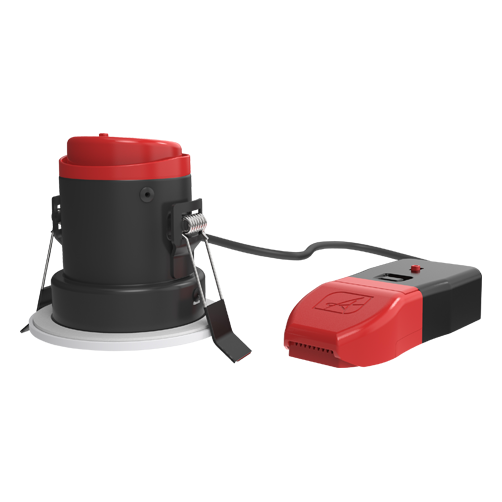

Prism Pro Anti Glare

Downlights

220-240V IP65 LED dimmable anti-glare CCT fire rated architectural downlight suitable for residential and hospitality applications. CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable. Innovative 2 part detachable connector and remote driver. Fully tested for 30, 60 and 90 minute ceiling types

Where to buy Got a question? Relux Calculator

Options

OCTO Smart Control

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 35°C

Lifetime

L70 54,000h, L70 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

220-240V IP65 LED dimmable CCT fire rated architectural downlight suitable for residential and hospitality applications
CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
Supplied with matt white bezel as standard. Chrome, satin chrome and matt black bezels sold separately
Anti-glare design to create visual comfort
New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
Remote driver with 2x1.5mm˛ + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
Low profile design and remote driver allow installation into shallow ceiling voids
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations

Variants

Related Case Study

Bringing New Life to Shakey J’s Diner with Innovative Lighting Solutions

Ansell Lighting provided energy-efficient, modern lighting solutions that brightened Shakey J's Diner, enhanced its quirky décor, and improved kitchen functionality, creating a welcoming ambiance for customers and staff alike.

Learn more

ShakeyJ's(After)-AnsellLighting-15Oct2024-DecoyMedia-5

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
