Code: APRIPMINIAG*

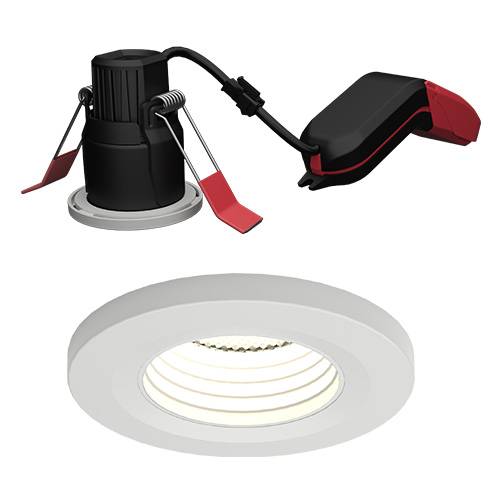

Prism Pro Mini Anti Glare

Downlights

Minature IP65 LED dimmable CCT fire rated anti-glare architectural downlight with ultra slim detachable driver with loop-in, loop-out push fit terminals provide an easy and efficient installation

Where to buy Got a question? Relux Calculator

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-5°C - 25°C

Lifetime

L80 54,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

Miniature IP65 Fire rated architectural downlight suitable for residential and hospitality applications
CCT selectable between 2700K, 3000K, 4000K and 6000K
Ultra slim detachable driver with loop-in, loop-out push fit terminals provide an easy and efficient installation
Can be used as the sole light source or as a complimentary product to Prism Pro / Prism Pro Anti-Glare
Supplied with matt white bezel as standard. Chrome, satin chrome and matt black bezels sold separately
Anti-glare design to create visual comfort
Low profile design and arched remote driver allows installation into shallow ceiling voids
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Fully tested to meet Part C (moisture) and Part E (acoustic) of Building Regulations

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
