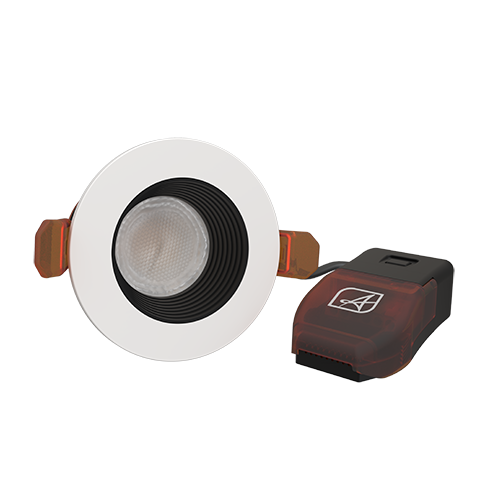

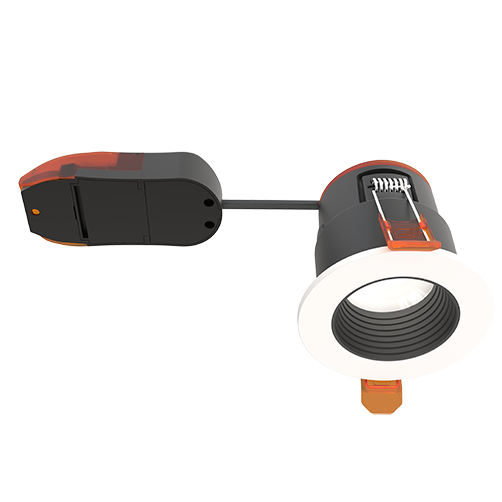

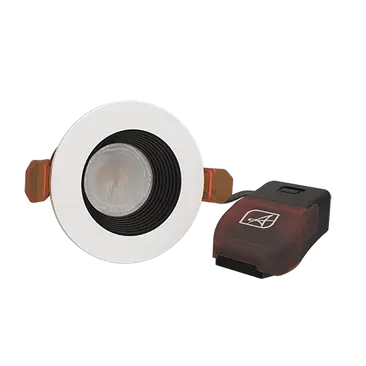

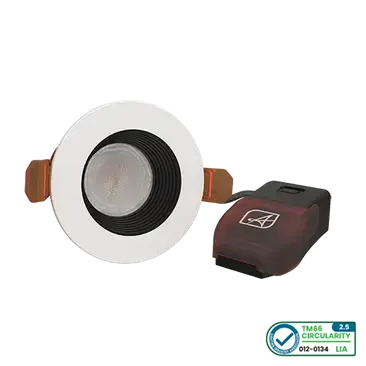

Prism Pro XM Anti Glare Fire Rated Downlight image

Code: APRIPAGXM/*

Prism Pro XM Anti Glare Fire Rated Downlight

Downlights

Modular, patent-applied design with replaceable engine and driver extends life and cuts waste. IP65 dimmable CCT fire-rated anti-glare downlight with two power outputs, low-profile fit and anti-glare design. Detachable connector and fast-fit plug speed install. Supplied with matt white bezel. Tested to Parts C, E and L

Where to buy Got a question?

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-10°C - 35°C

Lifetime

L80 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

220-240V IP65 LED dimmable, anti-glare CCT fire rated architectural downlight suitable for residential and hospitality applications
CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
Innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation

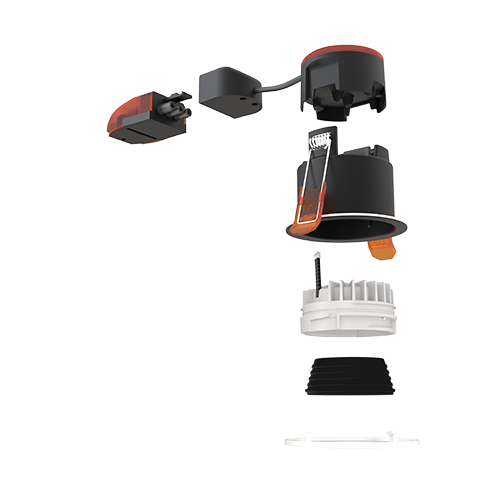

Patent-applied modular design with replaceable light engine and driver — extend product life and reduce waste through easy part replacement
Supplied with matt white bezel as standard. Chrome, satin chrome and matt black bezels sold separately
Anti-glare design to create visual comfort
Fast-fit plug with lever terminals provide easy connection

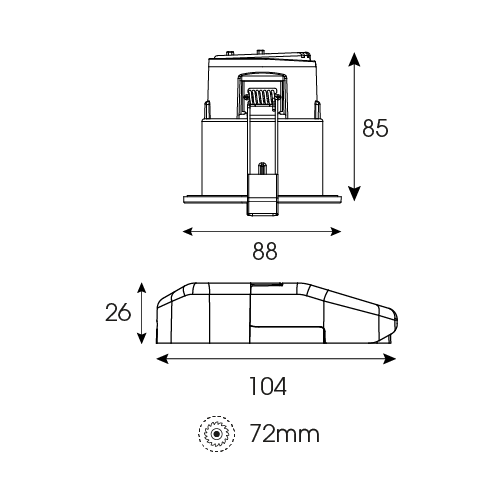

Low profile design allows installation into shallow ceiling voids
Fully tested to meet Part C (moisture), Part E (acoustic)and Part L (energy) of Building Regulations

Variants

Related Accessories

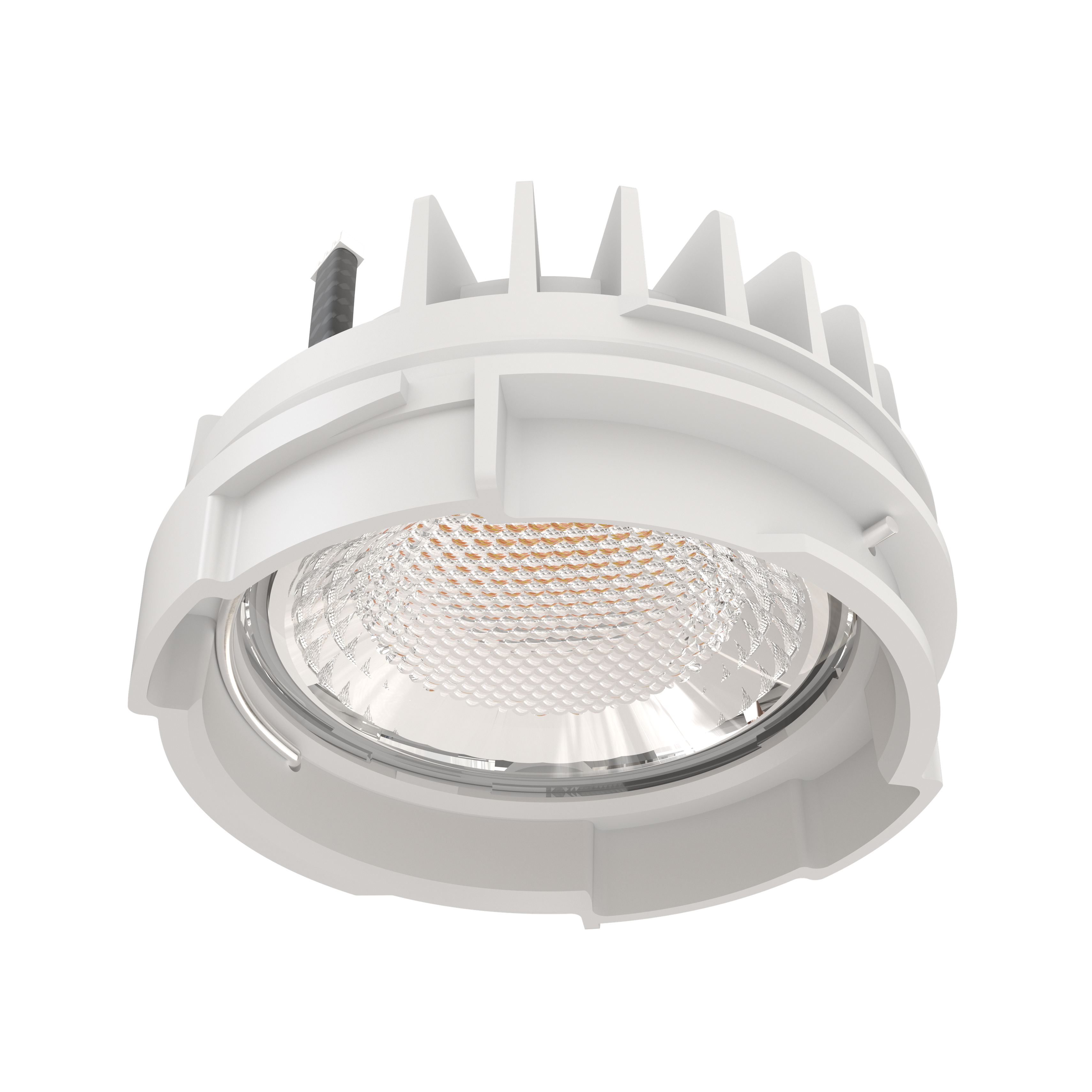

Prism Pro XM Anti-glare Replacement Light Engine

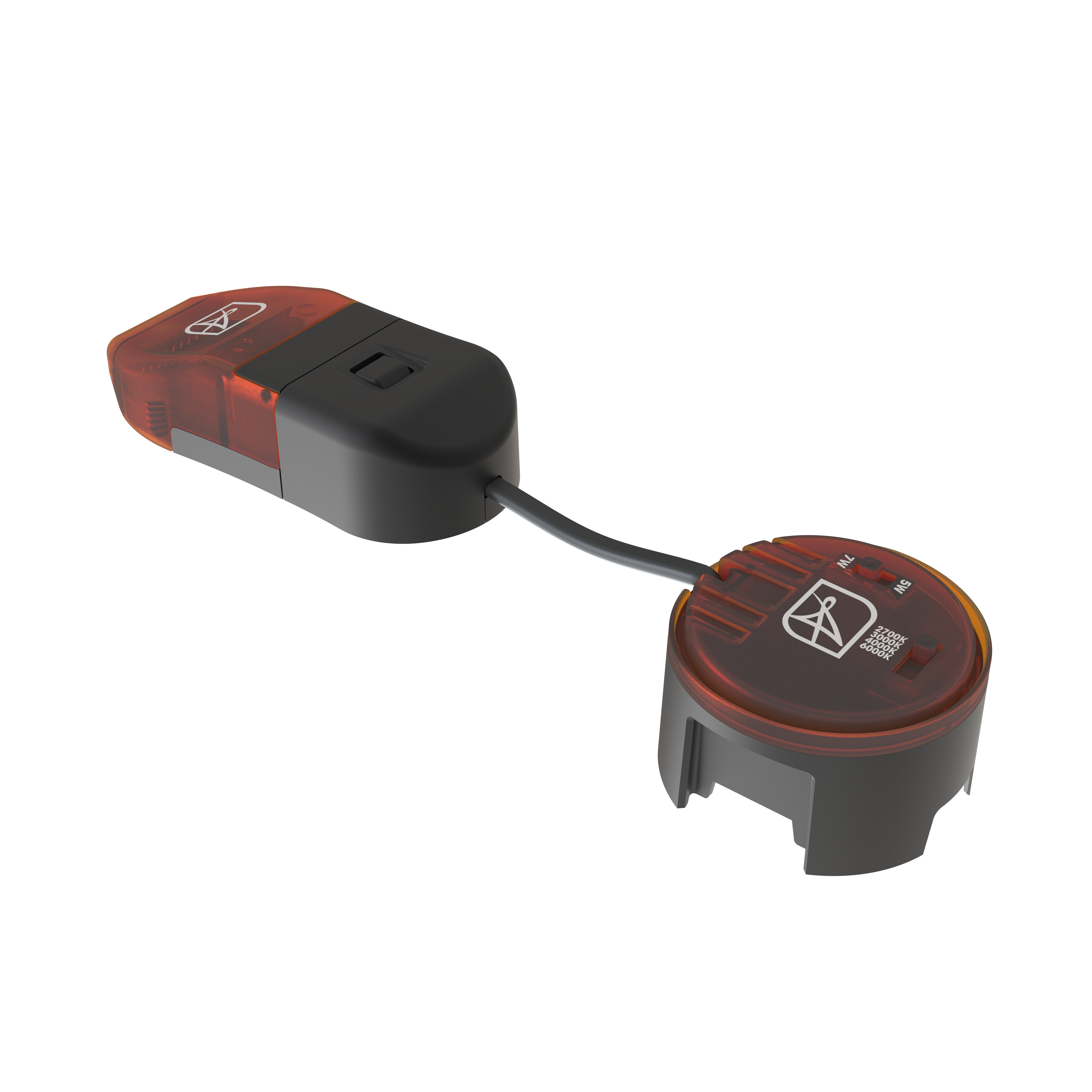

Prism Pro XM Universal Replacement Driver

Prism Pro XM AG Bezel - Black/Black

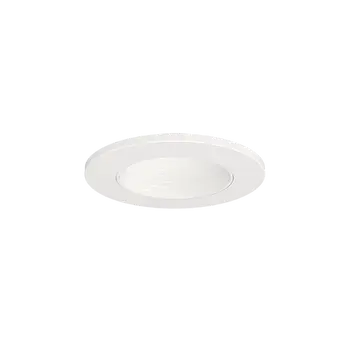

Prism Pro XM AG Bezel - White/White

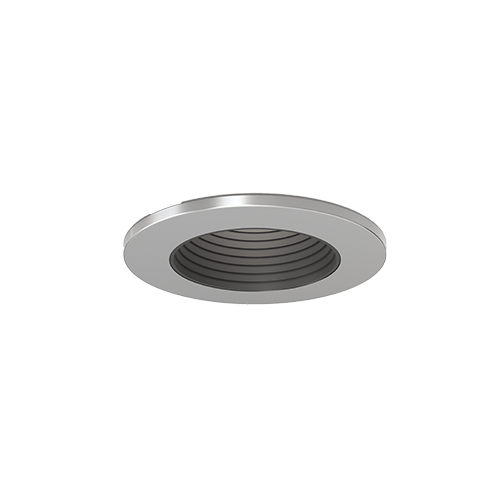

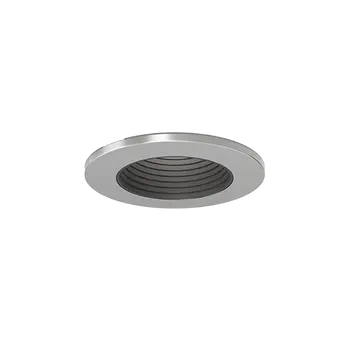

Prism Pro XM AG Bezel - Satin Chrome/Black

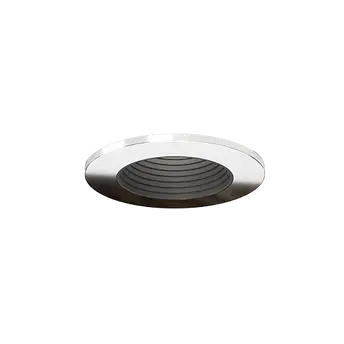

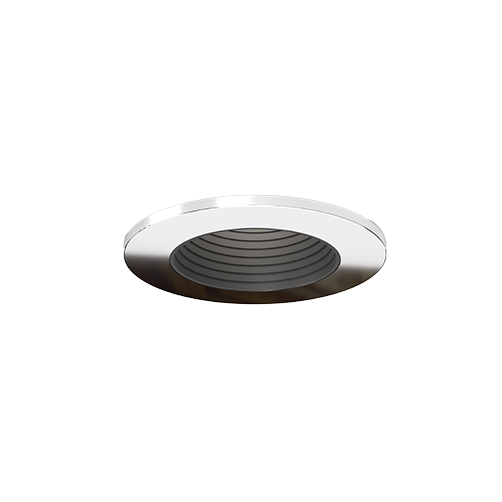

Prism Pro XM AG Bezel - Chrome/Black

Prism Pro XM AG Bezel - Antique Brass/Black

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
