Code: APRIPXM/*

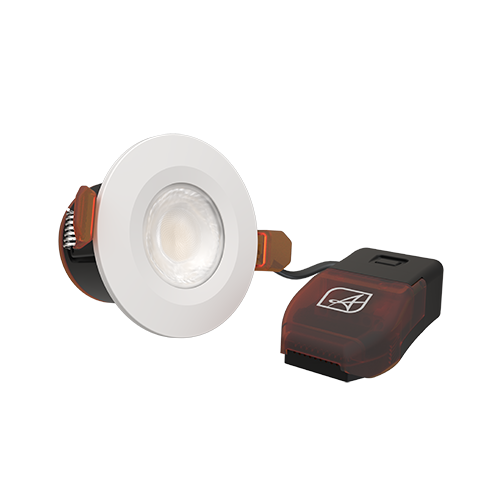

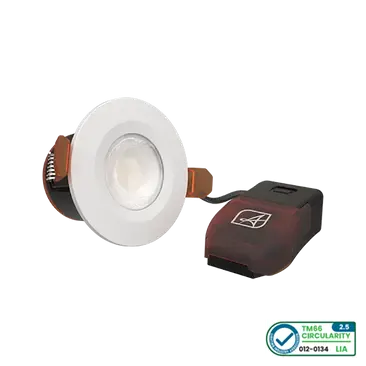

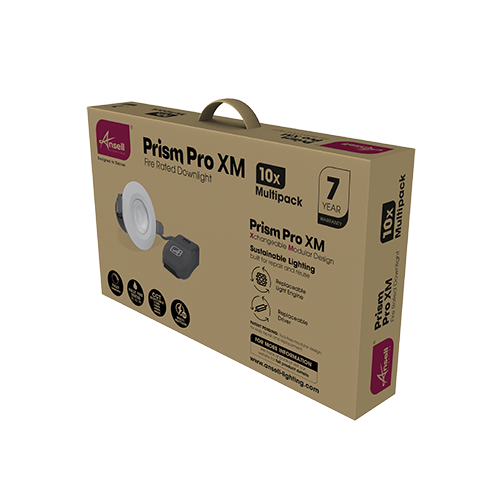

Prism Pro XM Fire Rated Downlight

Downlights

Modular, patent-applied design with replaceable engine and driver boosts longevity and cuts waste. IP65 fire-rated dimmable downlight with 4 CCT and two power levels, 60° beam and low-profile fit. Fast-fit plug and detachable connector speed install. Fully tested to Parts B, C, E and L.

Where to buy Got a question?

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-10°C - 35°C

Lifetime

L80 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

IP65 dimmable LED Fire Rated Downlight suitable for residential and hospitality applications
CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire

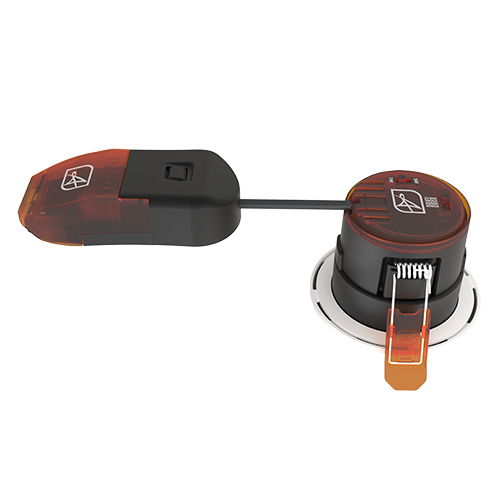

Innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
Patent-applied modular design with replaceable light engine and driver — extend product life and reduce waste through easy part replacement.
Fast-fit plug with lever terminals provide easy connection
Low profile design allows installation into shallow ceiling voids
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
Wide 60° beam angle for increased light distribution

Variants

Related Accessories

Prism Pro XM Replacement Light Engine

Prism Pro XM Universal Replacement Driver

Prism Pro XM Trimless Bezel

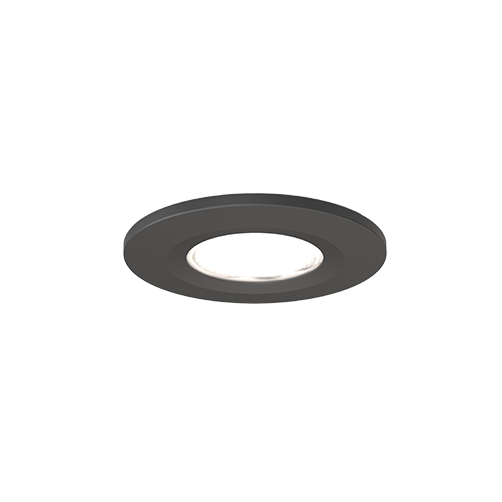

Prism Pro XM Bezel - Matt Black

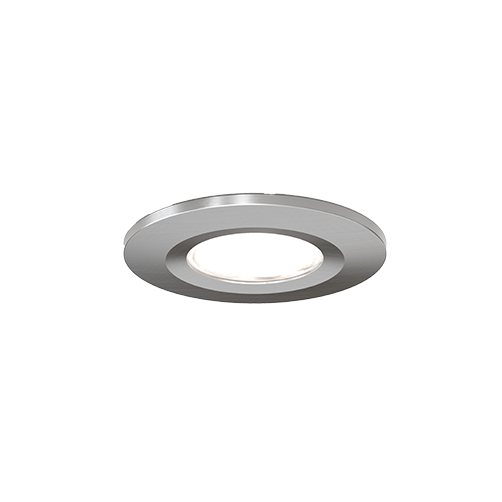

Prism Pro XM Bezel - Satin Chrome

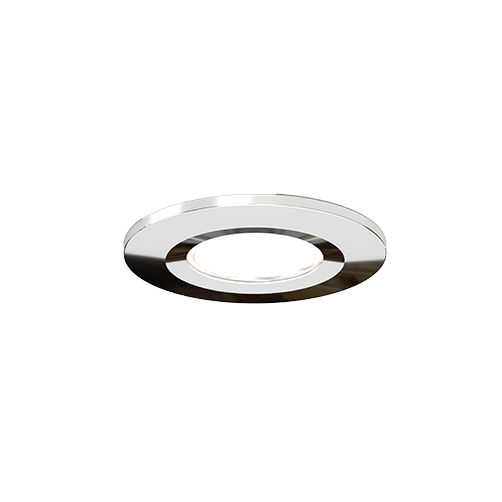

Prism Pro XM Bezel - Chrome

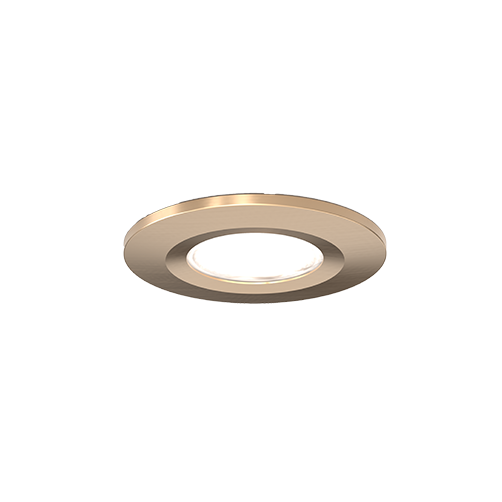

Prism Pro XM Bezel - Antique Brass

Prism Pro XM Converter Kit - Matt Black

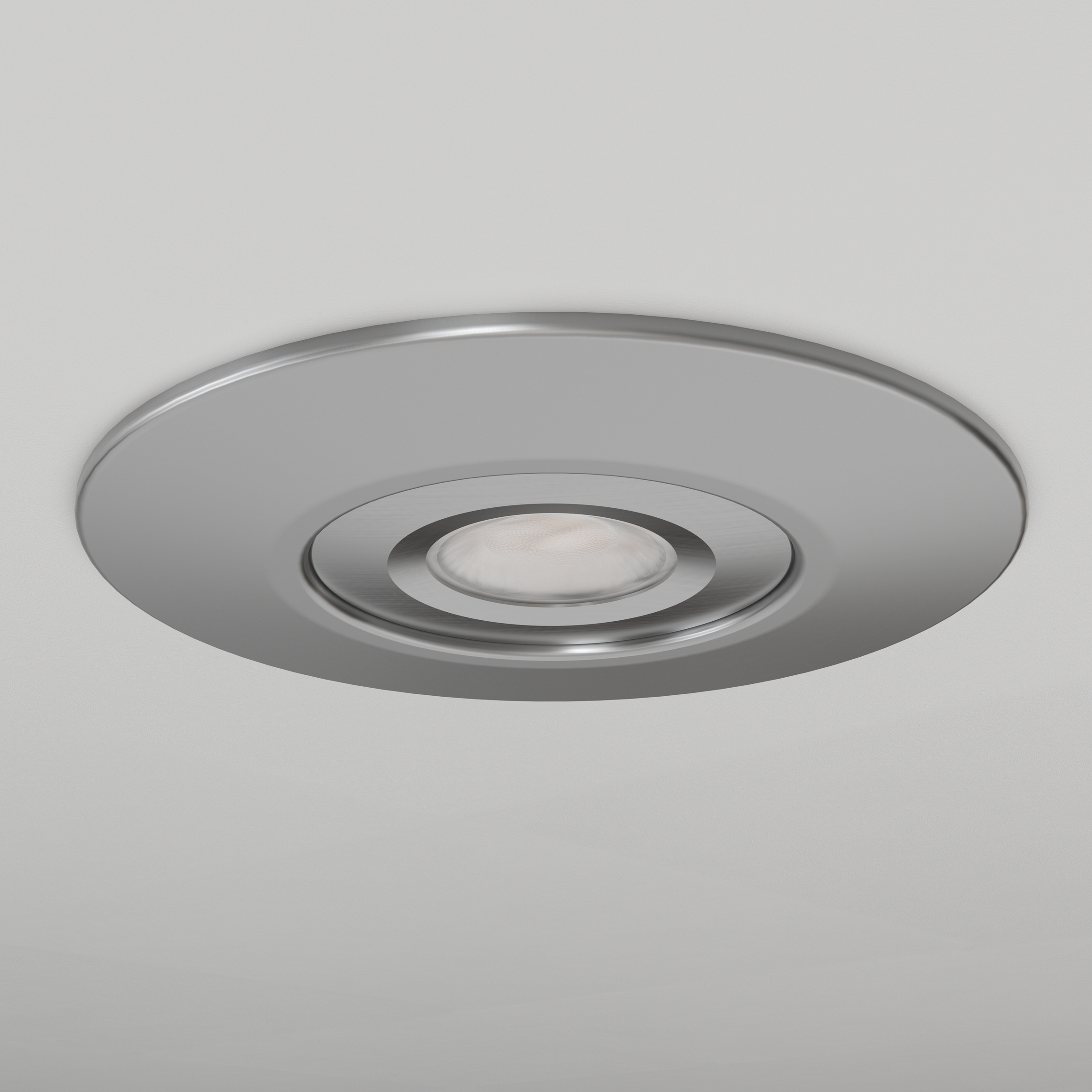

Prism Pro XM Converter Kit - Satin Chrome

Prism Pro XM Converter Kit - Chrome

Prism Pro XM Converter Kit - Antique Brass

Prism Pro XM Converter Kit - White

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
