Unity Wallwash

Downlights

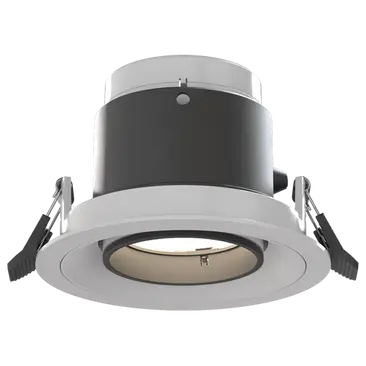

Retractable head recessed adjustable architectural downlight with upto 130lm/W efficiency and CRI 90 provides elite level performance and light quality. Extension, tilting and rotation within one product with adjustable tilt angle from -15° to 30°.

Where to buy Got a question?

Options

OCTO Smart Control

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 25°C

Lifetime

L90 100,000h

CRI

SDCM

Beam Angle

36, 50

Class

IP Rating

IP20

IK Rating

IK02

Features

Retractable head recessed adjustable architectural downlight suitable for commercial, hospitality and retail applications
Upto 130lm/W efficiency and CRI 90 provides elite level performance and light quality
Extension, tilting and rotation within one product
Adjustable tilt angle from -15° to 30°
Die-cast aluminium body and heatsink for good thermal management
Remote driver with plug and play connection
Dimmable and Emergency options, standard and Self-Test Emergency available using the Hawk Kit Emergency Pack

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
