Z LED ECO

High/Low Bay

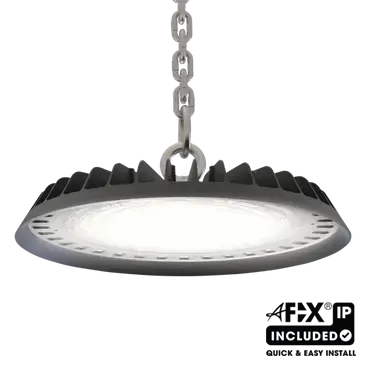

Sleek and robust LED low/high bay with die-cast powder coated construction and heatsink for optimum thermals and performance. Lensed diffuser design helps to control the beam angle, offering better light distribution and high efficiency up to 120lm/w. AFIX Connector included.

Where to buy Got a question? Relux Calculator

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-45°C - 45°C

Lifetime

L80 60,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP66

IK Rating

IK09

Features

Sleek and robust LED low/high bay for industrial applications and ancillary areas
Die-cast powder coated construction and heatsink for optimum thermals and performance
Lensed diffuser design helps to control the beam angle, offering better light distribution
High efficiency up to 120lm/w
Integral on-board driver reduces the overall size and weight of product, resulting in a slim, lightweight and easy to install unit
Installation eye-bolt supplied as standard
Alternative installation options by means of drop rods, jack chain and catenary wire.
IP66 and IK09 ratings
Pre-wired with 1M of H05RN-F cable for ease and speed of installation

Variants

Similar Products

Z LED PLUS

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
