Code: AZPLLED/*

Z LED Linear

High/Low Bay

Our Z LED Linear offers is a powerful and durable IP65 die-cast powder coated, 1-10Volt dimmable LED linear high bay with heatsink delivering optimum thermal transfer and performance. It also comes with a linkable bracket for continuous mounting making this ideal for industrial applications.

Where to buy Got a question? Relux Calculator

Options

Emergency

OCTO Smart Control

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-30°C - 40°C, -30°C - 45°C, 0°C - 45°C

Lifetime

L80 54,000h

CRI

SDCM

4, 5

Beam Angle

25/115

Class

IP Rating

IP65

IK Rating

IK10

Features

Powerful and durable surface mounted IP65 linear high bay, perfect for the demands of industrial applications
Surface mounting possible with AZPLLED/LC accessory
1.5m Suspension kit supplied as standard
Die-cast aluminium construction provides enhanced thermal performance for longer LED lifespan
Plug and play microwave sensor option, offering maximum energy saving
0/1-10V dimmable as standard (installer must drill through pilot hole and use an IP rated gland on install)

Variants

Related Case Study

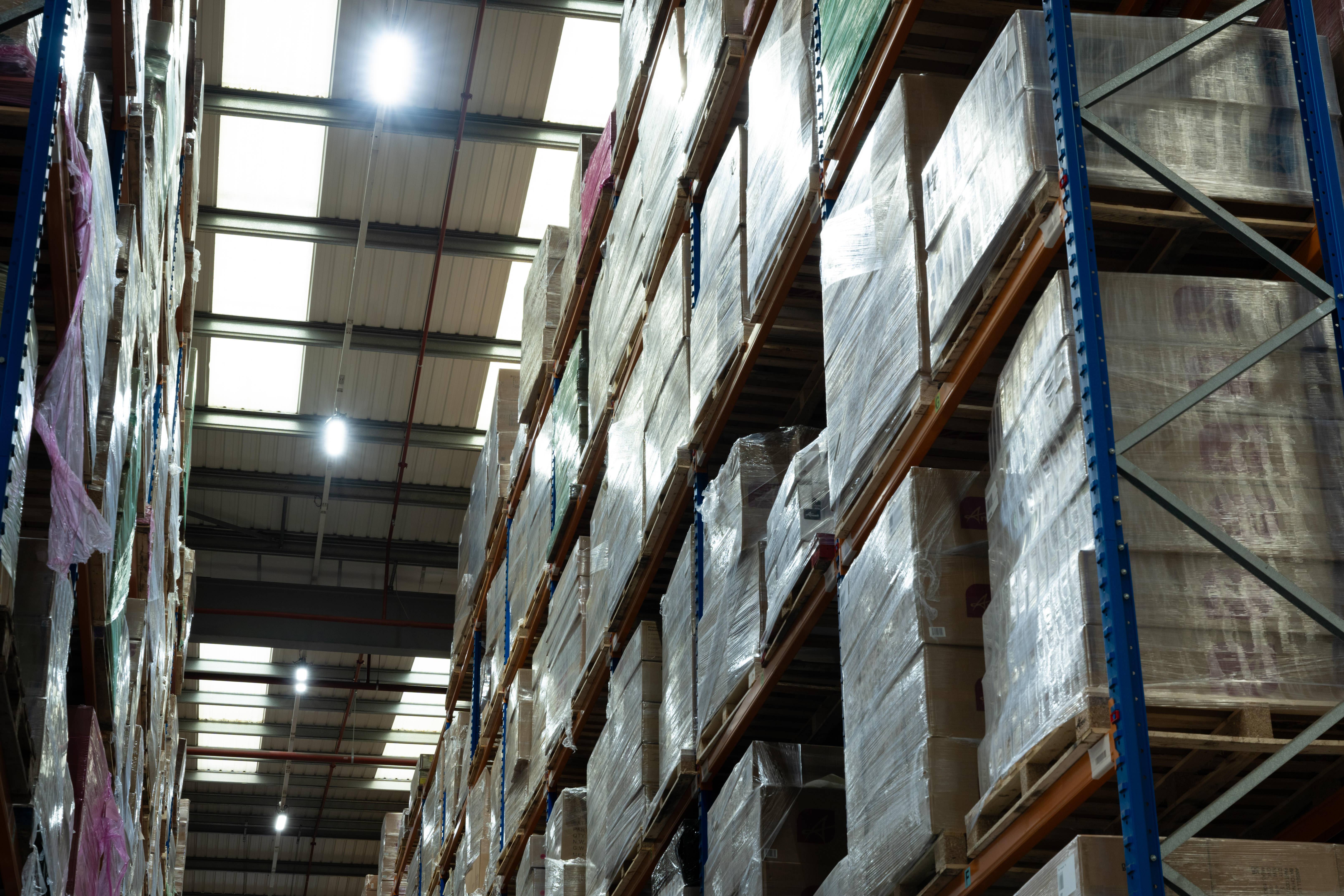

Ansell Lighting – Warehouse Facility

We at Ansell Lighting upgraded our Warrington warehouse with Z LED Performance and Z LED Linear Opti-X luminaires, incorporating OCTO smart controls. This enhanced energy efficiency, improved lighting conditions, and achieved payback within two years.

Learn more

Warehouse-AnsellLighting-14May2024-DecoyMedia-41

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: The 3 Highbay and single Lowbay variances, encompass 15 different wattage and lamp colour options of luminaire selection across the range, and with the various additional dimming, lighting control, emergency, and sensor options, as well as a range of reflector, lens, and mounting bracket assemblies, this makes this an extensive range, which presents the specifier with the opportunity to select the optimum fitting solution for their particular application.

Read more in our blog.
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
