Code: AEFRD/**

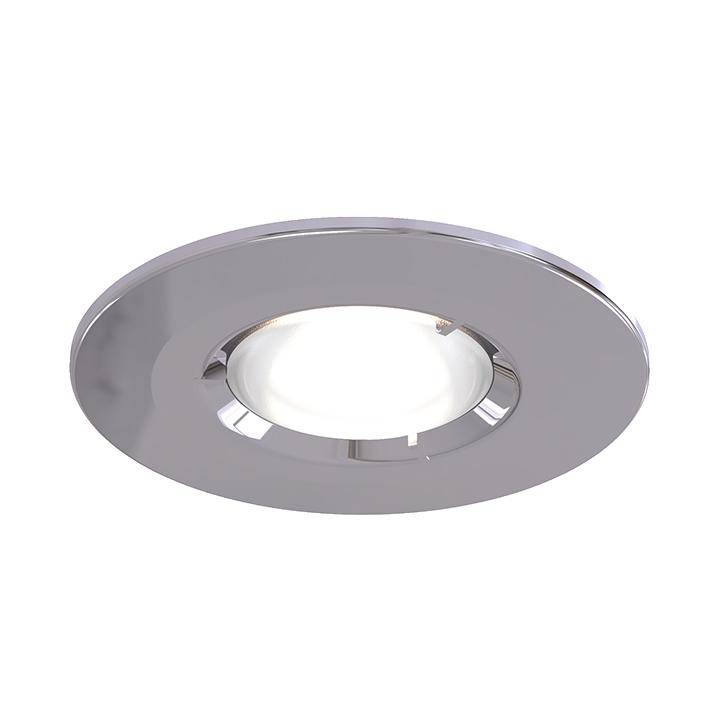

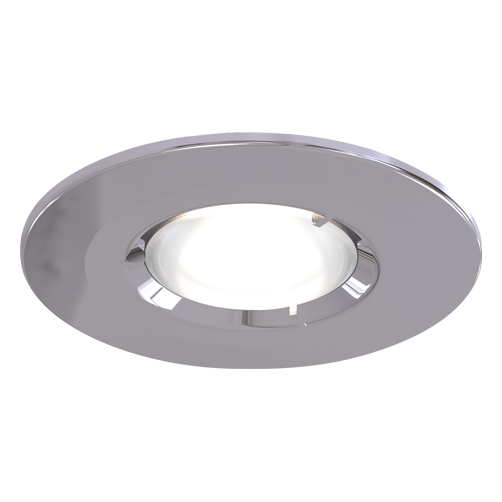

Edge – Fixed

Downlights

Compact Fire Rated GU10 LED downlight (less lamp) for shallow ceiling voids, protective polycarbonate spring clip cover for easy install, extra-large terminals for fast loop-in/loop-out wiring and an ultra-slim bezel. OCTO Connected by WiZ GU10 lamp options. Ideal for residential and hospitality.

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

0°C - 25°C

Class

IP Rating

IP20

IK Rating

IK06

Features

Compact Fire Rated downlight for shallow ceiling voids suitable for residential and hospitality applications (product supplied less lamp)
Suitable for standard GU10 halogen or LED lamps
Protective sheathing spring clips for ease of installation and ceiling protection
Push fit terminals for fast loop-in, loop-out wiring
Twistlock lamp retaining ring for ease of lamp replacement
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Ultra-slim bezel profile
Option to add Bluetooth and WiFi enabled smart WiZ GU10 lamp

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
