Code: AFRWOLED/220/**

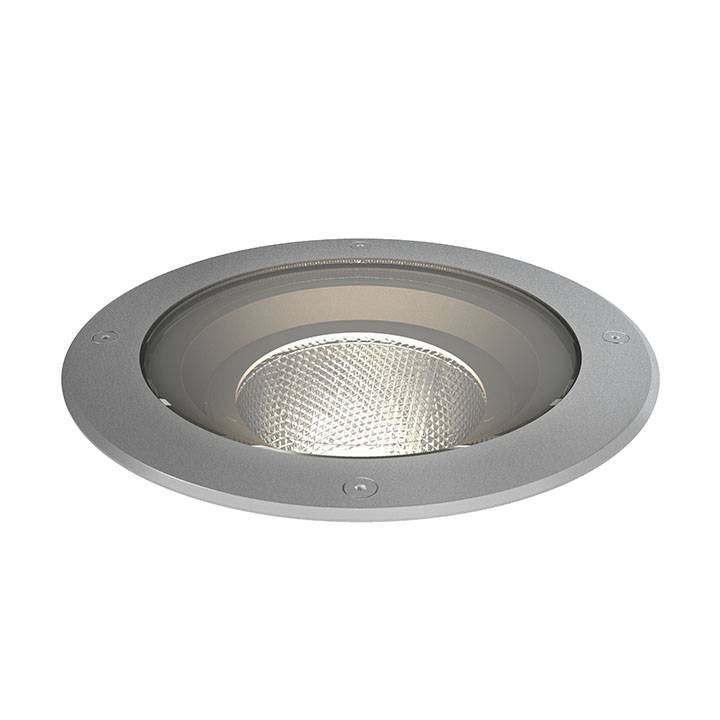

Fresno Adjustable 220mm

Feature Lighting

Performance LED adjustable aluminium, powder coated, non-dimmable inground uplight, 304L stainless steel bezel, installation housing for added protection and easy install, integral driver and pre-wired 2m rubber insulated cable. Static load test to 2000kg. Ideal for commercial and hospitality.

Where to buy Got a question?

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-20°C to 40°C

Lifetime

L80 50,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP67

IK Rating

IK10

Features

High performance LED adjustable inground uplight suitable for commercial and hospitality applications
304L stainless steel bezel and powder coated aluminium housing
Supplied c/w installation housing for additional protection and ease of installation
Integral driver and pre-wired with 2 metres of rubber insulated cable
Static load test to 2000kg and therefore suitable for vehicular and pedestrian traffic
Non-dimmable

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
