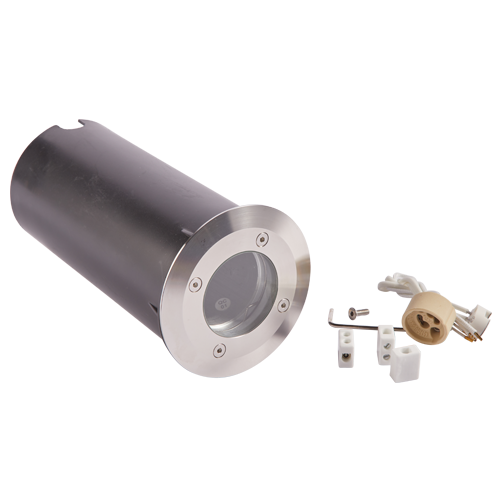

GU10/MR16 Inground Uplight

Feature Lighting

Compact GU10 inground uplight for residential use. Die-cast aluminium body with 10mm toughened glass and 316 stainless steel top ring. Handles up to 2000kg load—ideal for vehicle and foot traffic. Includes thermoplastic sleeve. OCTO WiZ lamp compatible. Use LED GU10 for safer surface temps.

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-10°C - 25°C

Class

1 & 3

IP Rating

IP67

IK Rating

IK10

Features

GU10 inground uplight suitable for residential applications
Supplied with GU10 lampholder
Compact inground uplight which accepts 12V and LED lamps
Housing in die-cast aluminium with clear toughened glass diffuser of 10mm thickness
316 stainless steel top ring and stainless steel allen key screws
Static load test to 2000kg; suitable for vehicular and pedestrian traffic

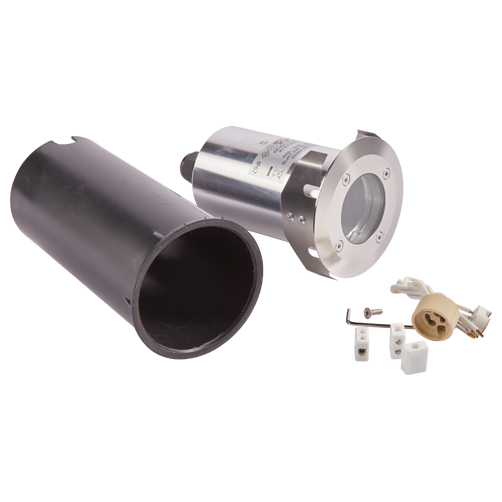

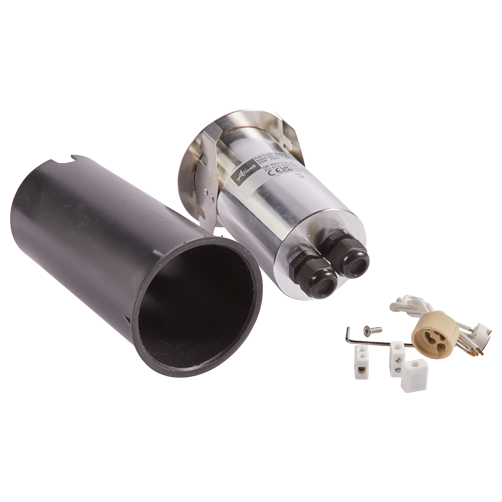

Supplied with recessed sleeve in high resistant thermoplastic
Option to add OCTO Connected by WiZ smart GU10 lamp
Caution: surface glass temperature will get very hot under normal halogen operation. It is recommended to use GU10 LED lamps for cooler operation.

Downloads

Datasheet

Instructions

Photometric (PDF)

Declaration of conformity

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.
