Code: AWO/GU10

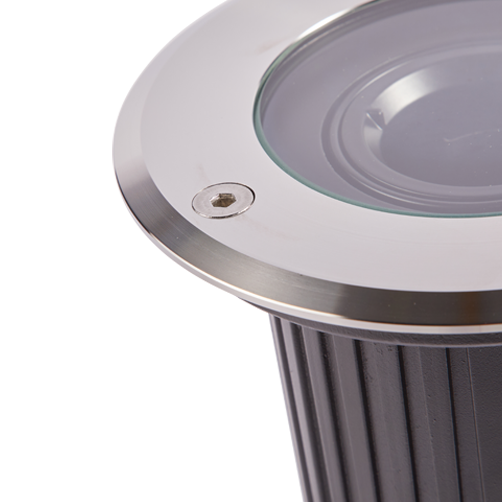

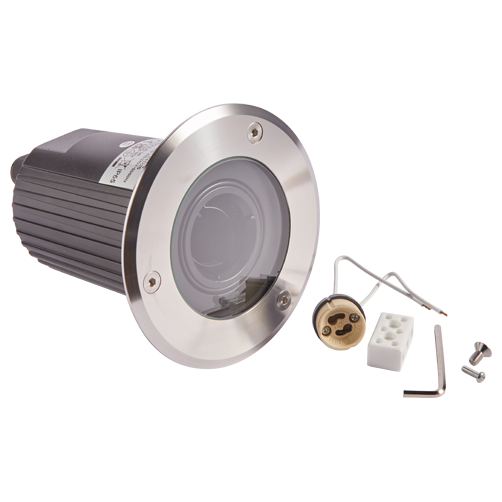

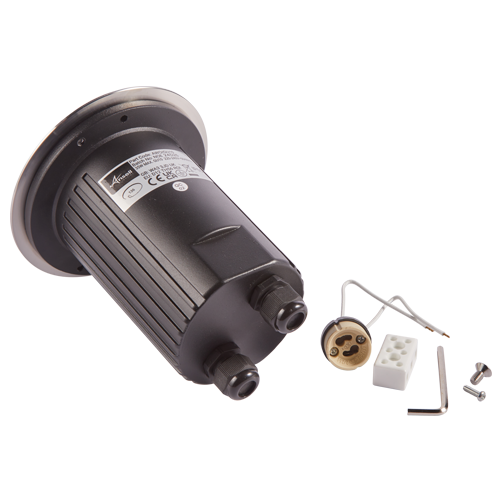

GU10 Adjustable Inground Uplight Stainless Steel

Feature Lighting

Die-cast aluminium GU10 adjustable inground uplight, 8mm clear toughened glass diffuser, 304 stainless steel top ring, Allen key screws and 15° inclination lampholder. Suitable for pedestrian traffic, static impact resistance up to 1000kg. Option for Bluetooth and WiFi enabled smart GU10 lamp. Ideal for residential.

Where to buy Got a question?

Specification

Input

220/240V

Hertz

50/60Hz

Temp

-10°C - 25°C

Class

IP Rating

IP65

IK Rating

IK10

Features

GU10 adjustable inground uplight suitable for residential applications
Die-cast aluminium housing with a clear toughened glass diffuser of 8mm thickness
304 stainless steel top ring and stainless steel allen key screws
Adjustable lampholder to allow up to 15° vertical inclination of lamp
Suitable for pedestrian traffic with a static impact resistance of up to 1000kgs
Option to add OCTO Connected by WiZ smart GU10 lamp
Caution: surface glass temperature will get very hot under normal halogen operation. It is recommended to use GU10 LED lamps for cooler operation.

Downloads

Datasheet

Instructions

Photometric (PDF)

Declaration of conformity

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: All electrical devices are tested to determine a level of resistance against the intrusion of solids and liquids.

Once tested, the product is given an IP rating, which stands for Ingress Protection. IP Rating uses a two-digit code where the first digit is a number value of between 0 & 6, for protection against ingress from a solid object, and the second digit is a number value of between 0 & 9, for resistance against ingress of moisture.

Ingress protection is important as it allows the safe use of lighting equipment within environments where it is possible dust particles and water may get into the fitting and having a suitable IP Rating will give customer confidence in purchasing lighting fittings which are suited to the application into which they are to be installed.

Read more in our blog article
