Code: APRILEDP/MINI/CCT

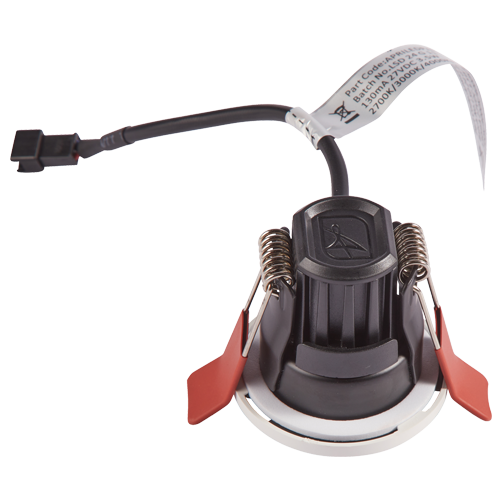

Prism Pro Mini

Downlights

Ultra-slim, angled remote LED driver with push-fit terminals for easy install. Fits shallow ceiling voids. Detachable for fast fixing. Use solo or with Prism Pro range. Compliant with Parts B, C, E & L of Building Regs. Ideal for 30, 60 & 90 min ceiling types.

Where to buy Got a question? Relux Calculator

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-5°C - 25°C

Lifetime

L80 54,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP65

Features

Miniature IP65 dimmable fire rated performance downlight suitable for residential and hospitality applications
Ultra slim remote driver with loop-in, loop-out push fit terminals provide an easy and efficient installation
Can be used as the sole light source or as a complimentary product to Prism Pro / Prism Pro Anti-Glare
Unique angled LED driver for easy installation through the smaller downlight cut out
Detachable LED driver for fast fix install
Low profile design and arched remote driver allows installation into shallow ceiling voids
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations

Product Code	Description	Wattage	Lumens	LM/W	Technical Specifications
APRILEDP/MINI/CCT	Prism Pro Mini	5W	450lm (4000K)	90lm/W (4000K)

Downloads

Datasheet

Instructions

Photometric (PDF)

Photometric (IES/LDT)

Declaration of conformity

GLDF Model

Related Case Study

En La Parra Restaurant

Michelin Star restaurant gains competitive advantage through OCTO smart lighting system

Learn more

Inspiration

Prism Pro - Downlights

Related Accessories

LED Emergency Lighting Pack Maintained / Non-Maintained

Prism Pro Mini CCT Matt Black Bezel

Prism Pro Mini CCT Chrome Bezel

Prism Pro Mini CCT Satin Chrome Bezel

Similar Products

Prism Pro Mini Anti Glare

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: When installing materials into a building against the potential risk of fire, there is a requirement to look at ‘Fire Reaction’ and ‘Fire Resistance’.

Fire Reaction constitutes a testing and classification process to determine the reaction to fire of building construction materials and in their contribution to the growth of a fire within a building.

Fire Resistance is an important and detailed requirement for buildings where fire resistance is expressed as the number of minutes of time duration where the building material and/or its component has the ability to withstand and resist the effects caused and result from a fire.

Read more in our blog.
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
