Code: ATRI*/*

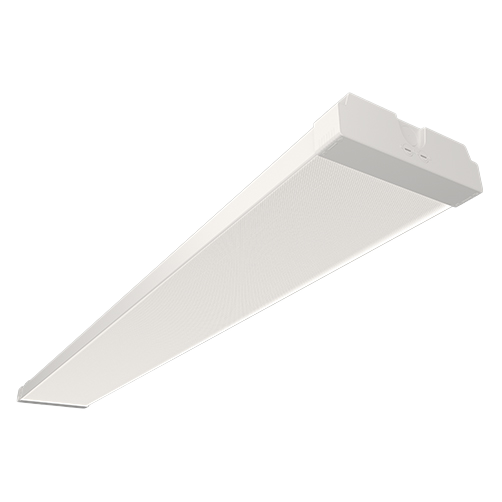

Trinity UGR19 Surface Linear

Commercial Linear
Internal 5 Emergency Self Test Ceiling

High specification surface linear with UGR<19 (unified glare rating) which greatly reduces glare for visual comfort. Retractable and lockable end caps ensure suitability for education applications.

Where to buy Got a question? Relux Calculator

Options

Emergency (Self Test)
Emergency
Dimmable
Microwave Sensor

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C to 40°C, 0°C to 40°C

Lifetime

L80 80,000h

CRI

80

SDCM

3

Beam Angle

90

Class

1

IP Rating

IP44

IK Rating

IK06

Features

  • High specification UGR<19 surface linear suitable for healthcare, education and commercial applications
  • UGR<19 (unified glare rating) compliant luminaire greatly reduces glare for visual comfort

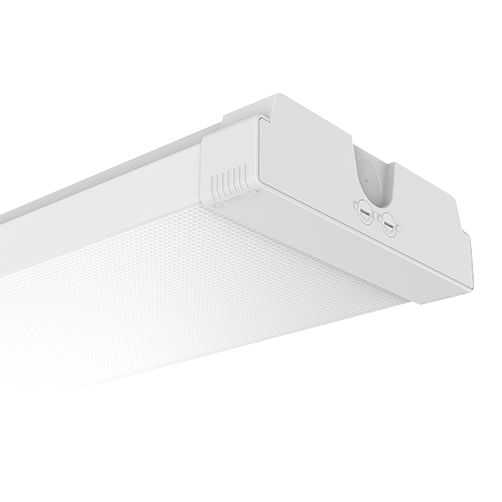

  • Retractable and lockable end caps ensure suitability for education applications

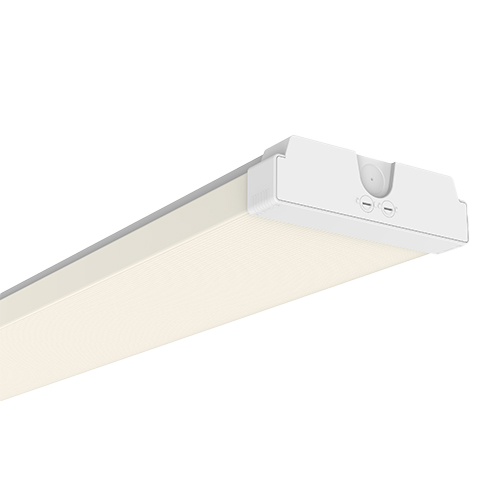

  • Power and CCT selectable between 3000K, 4000K and 6000K; offering a choice of 2 outputs and 3 colour temperature options, in one luminaire

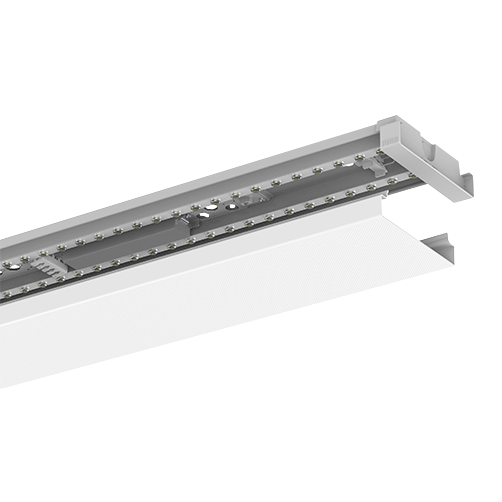

  • Steel body with polycarbonate diffuser and end caps
  • Dimmable and OCTO options available

Variants
