Code: ATLD/IP65/*

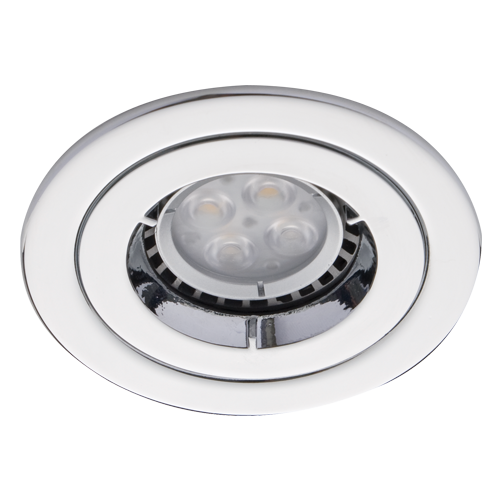

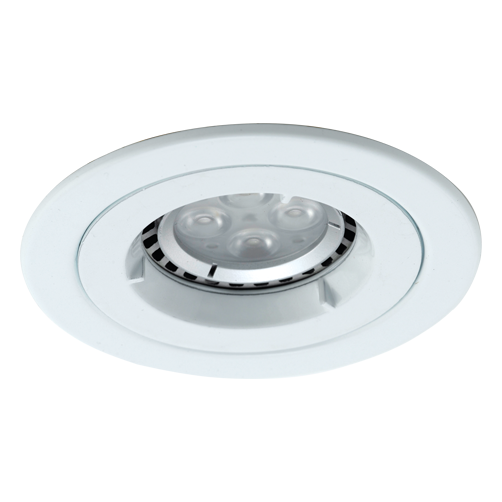

Twistlock GU10 IP65

Downlights

Die-cast IP65 aluminium GU10 downlight (less lamp) with permanent earth on stirrup bracket for mains earthing, sizeable terminal housing for 2×1.5mm² and loop-in, loop-out push fit terminals for easy install. OCTO Connected by WiZ GU10 lamp options. Ideal for residential and hospitality.

Where to buy Got a question?

Options

Specification

Input

220-240V

Hertz

50/60Hz

Temp

0°C - 25°C

Class

IP Rating

IP65

Features

IP65 downlight suitable for bathroom use (product supplied less lamp)
Die-cast aluminium construction with clear glass
Permanent earth on stirrup bracket for GU10 mains earthing
Generous size of terminal housing and 2x1.5mm˛ + CPC loop-in, loop-out push fit terminals provide an easy and efficient installation
Option to add Bluetooth and WiFi enabled smart WiZ GU10 lamp

Variants

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
