Code: AULED150DHP/**

Unity 150 DHP

Downlights

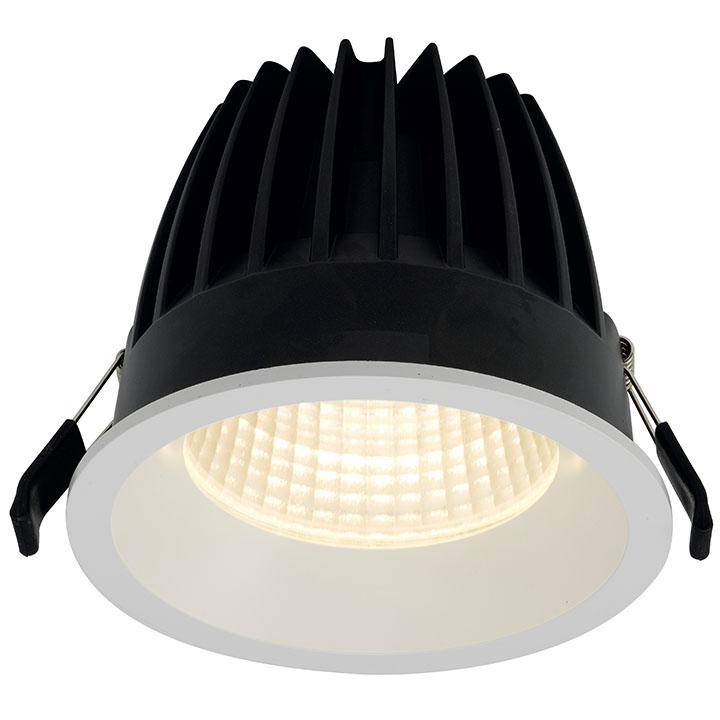

IP44 Compact high performance architectural downlight with powder coated die-cast aluminium and mirror finished anodized reflector. With 30° cut-off angle and anti-glare design for visual comfort. Remote ‘plug and play’ driver. Dimmable and emergency options. Ideal for residential, hospitality and retail applications.

Where to buy Got a question? Relux Calculator

Options

Emergency (Self Test)

Emergency

OCTO Smart Control

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 25°C, 0°C - 25°C

Lifetime

L70 50,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP44

IK Rating

IK02

Features

IP44 compact high performance architectural downlight suitable for commercial, hospitality and retail applications
Die-cast aluminium construction, powder coated and 30° cut-off angle
Mirror finished anodized reflector
Anti-glare design to create visual comfort
Remote driver with plug and play connection
Dimmable and emergency options
Powered by Tridonic

Variants

Related Case Study

Threeways Garage

Learn more

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
