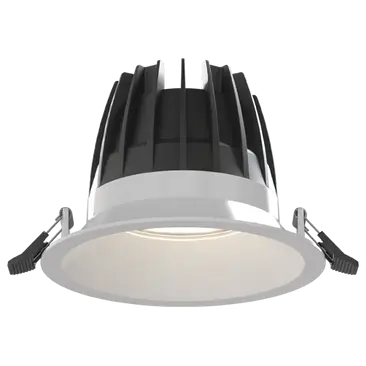

Unity Downlight

Downlights

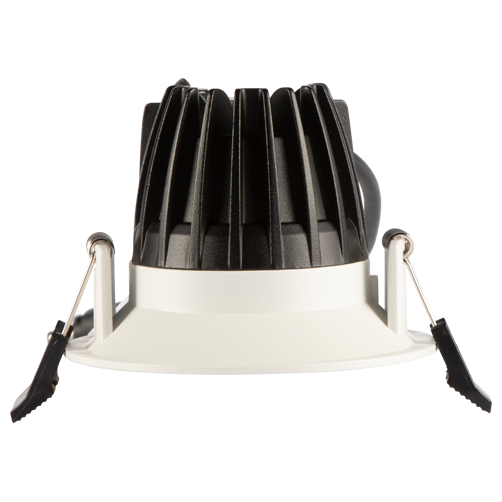

IP65 compact high performance architectural downlight with upto 130 lm/W efficiency and CRI 90 provides elite level performance and light quality. Die-cast aluminium construction and powder coated finish provide stylish and modern appearance. UGR<19 (unified glare rating) forAUND1/** and AUND2/** only.

Where to buy Got a question?

Options

OCTO Smart Control

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 25°C

Lifetime

L90 100,000h

CRI

SDCM

Beam Angle

56, 70

Class

IP Rating

IP65

IK Rating

IK02

Features

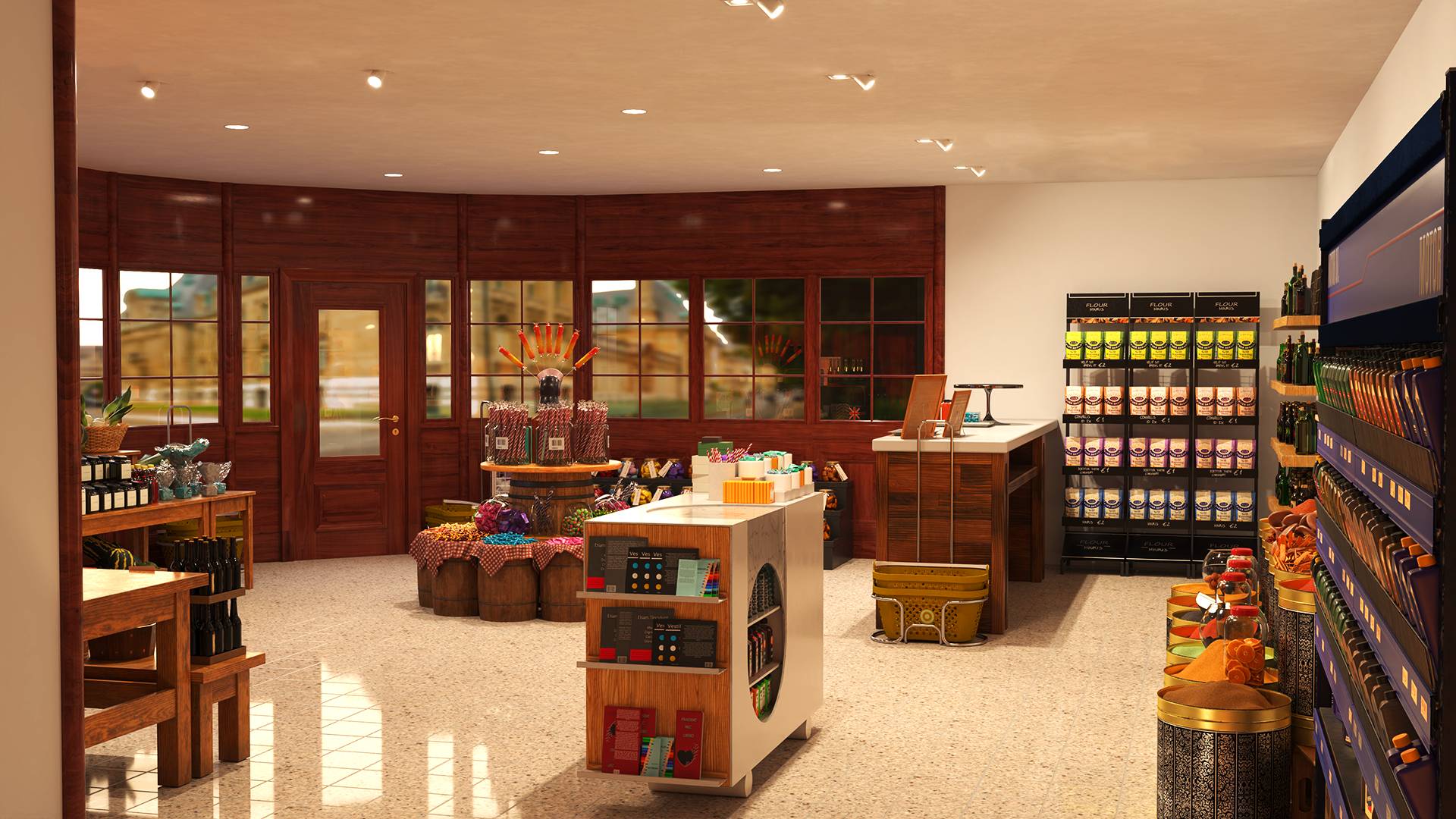

IP65 compact high performance architectural downlight suitable for commercial, hospitality and retail applications. Only bottom of the fitting obtains IP65 rating.
UGR<19 (unified glare rating) compliant luminaire assisting to eliminate glare for visual comfort (AUND1/** and AUND2/** only)
Upto 130 lm/W efficiency and CRI 90 provides elite level performance and light quality
Die-cast aluminium construction and powder coated finish provide stylish and modern appearance

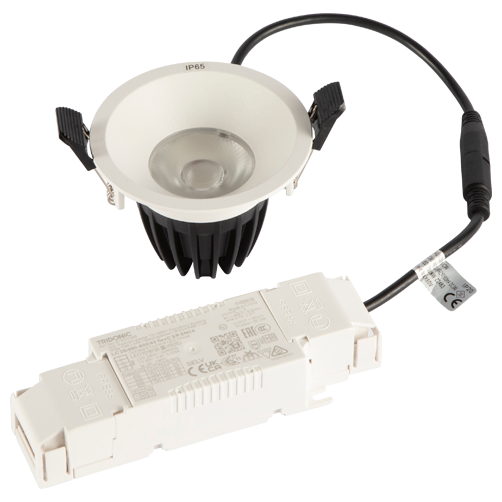

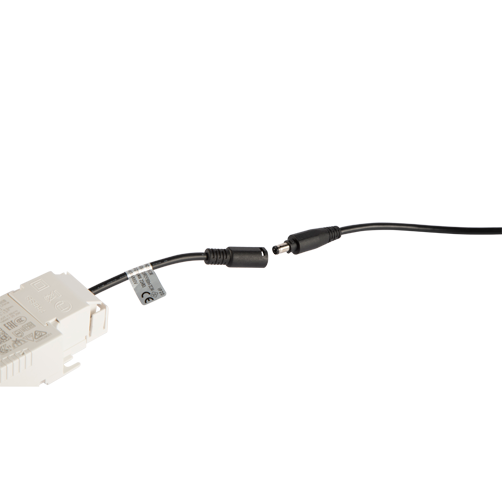

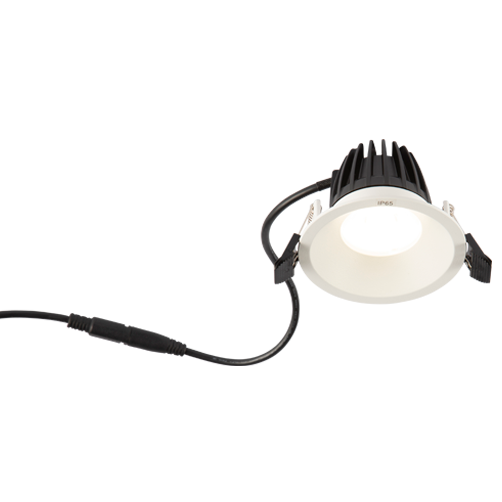

Remote driver with plug and play connection
Dimmable and Emergency options, standard and Self-Test Emergency available using the Hawk Kit Emergency Pack

Variants

Similar Products

Comfort EVO

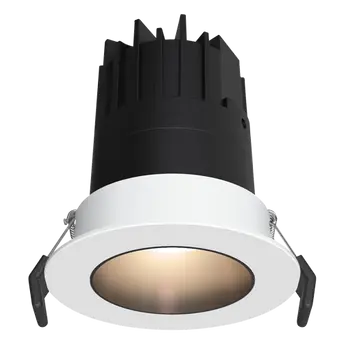

Unity GC Pro

Vantage UGR<19 CCT Downlight

Vantage CCT Downlight

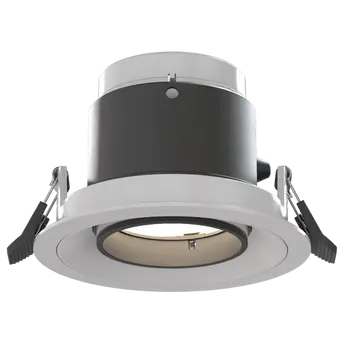

Unity Wallwash

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (compliance@anselluk.com)

)
: Light sources all have a colour temperature which will dictate whether the light emitted is either of a warm colour, an intermediate or neutral colour, a cool colour or a cold colour. The higher the colour temperature, the cooler, the colour appearance of the light source. The Colour Temperature is a description of the warmth or coolness of a light source. It is most simply, a method of demonstrating the colour characteristics of light, usually either as warm (yellowish) colour or a cool (bluish) colour.

Read more in our blog.
: The beam angle is the point at which the light output Lumens drop below 50% of the total light output. LED beam angles typically vary between 10° - 120°. The beam angle is the area where the light is at its most intense.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
