Code: AVAS*/1/*

Vasco EVO CCT Multi Wattage

Commercial Linear
Internal warranty 5 years 2 Emergency Self Test SurfaceSuspended

Aluminium bi-directional suspended or surface linear with bi–directional light output as standard with 30% upward light and 70% downward light ratio. High efficiency upto 150lm/W and opal diffuser (provided as standard) provides optimal light uniformity.

Where to buy Got a question? Relux Calculator

Options

Emergency (Self Test)
Emergency
Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C to 45°C, 5℃ to 45℃

Lifetime

L80 100,000h

CRI

80

SDCM

3

Beam Angle

110

Class

1

IP Rating

IP40

IK Rating

IK06

Features

  • Aluminium bi-directional suspended or surface linear suitable for education, commercial and retail applications

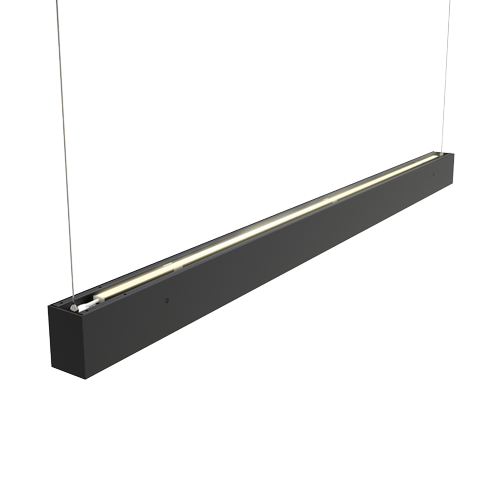

  • Bi–directional light output as standard with 30% upward light and 70% downward light ratio (downward only option can be selected if required, please note light output changes in downward only mode)
  • High efficiency upto 150lm/W (only when fitted with UGR diffuser - AVAS*/1/UGR)

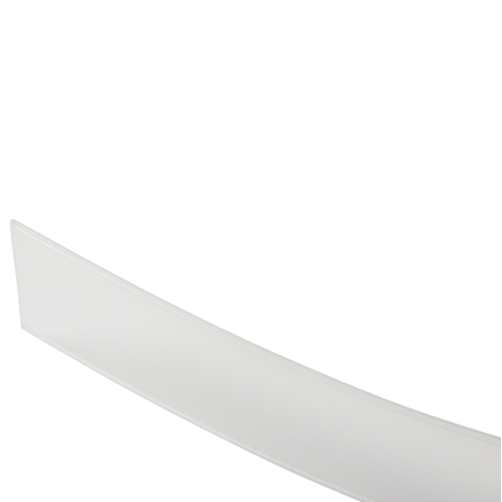

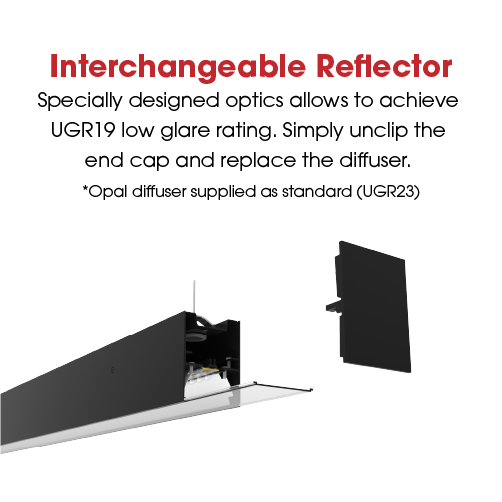

  • Opal diffuser (provided as standard) provides optimal light uniformity
  • CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire

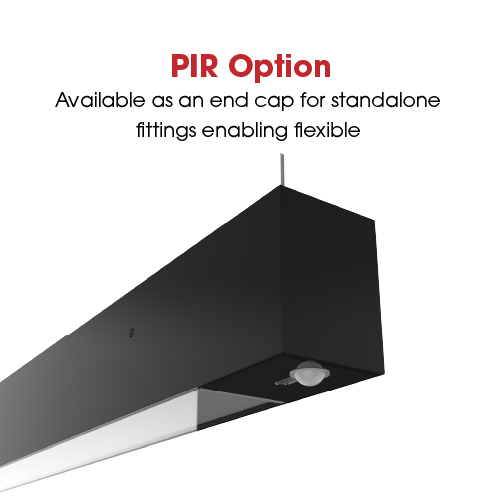

  • PIR end cap accessory available
  • Pre-wired with 1.5 metre cable

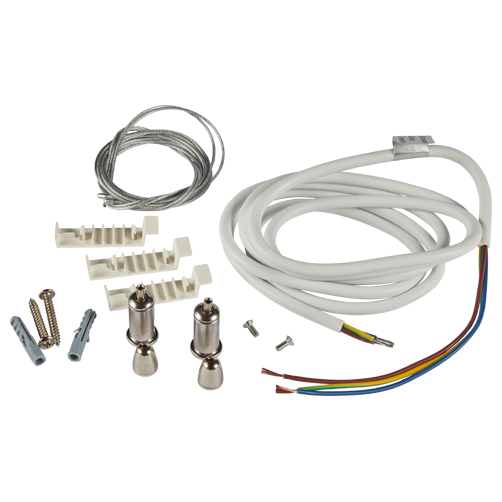

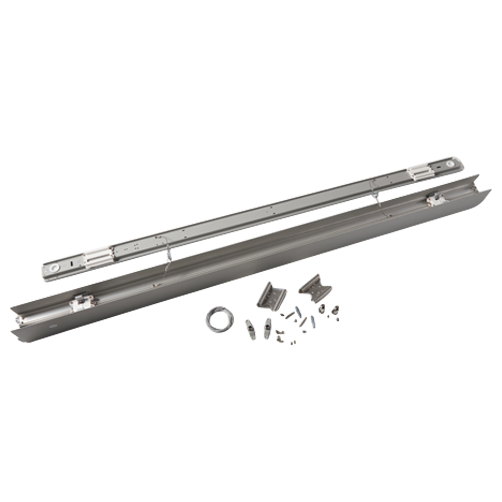

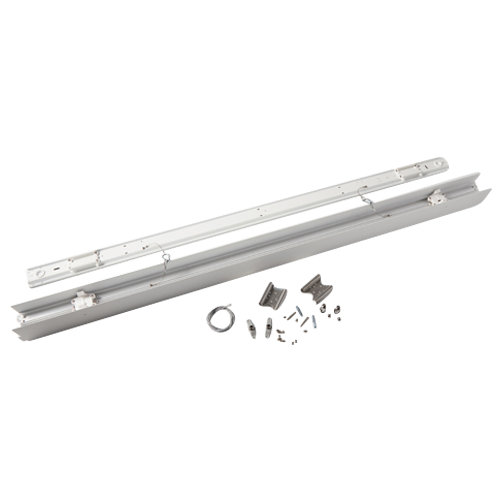

  • Adjustable suspension points c/w suspension kit

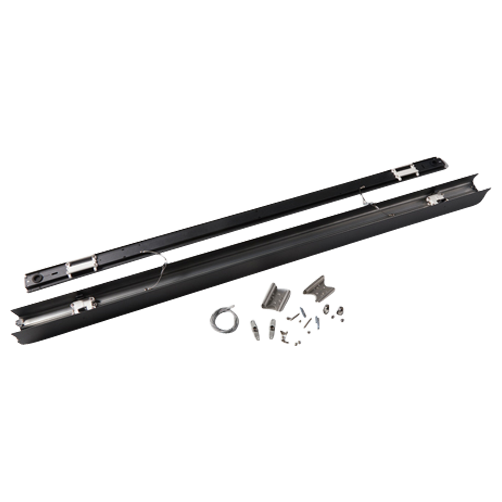

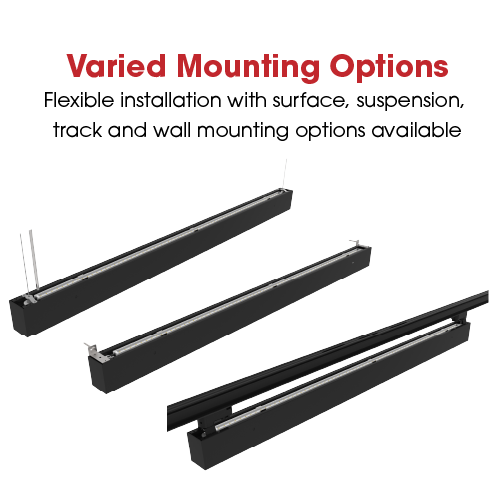

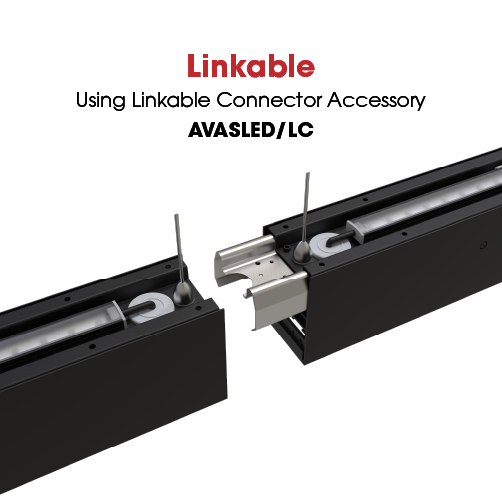

  • Surface and track mounting available using AVAS/WM/1 and AVAS/P3/1/* accessories
  • 1-10V dimmable as standard
