C-Cell IP67 Single White

LED Strip

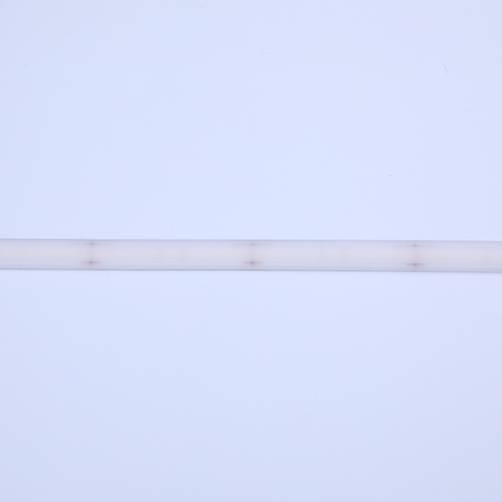

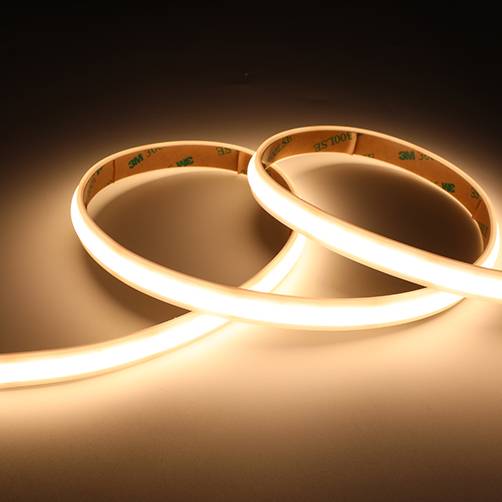

Dot free LED strip with continuous phosphor, uniform output provides seamless light for enhanced aesthetic appearance and allows product to be showcased as main lighting source, offering great installation versatility

Where to buy Got a question? LED Strip Calculator

Options

Dimmable

Specification

Input

24V

Temp

-20°C - 45°C

Lifetime

L70 36,000h

CRI

SDCM

Beam Angle

140

Class

IP Rating

IP67

Features

C-CELL dot-free LED strip suitable for residential, hospitality and retail applications
Continuous phosphor, uniform dot-free output provides seamless light output for enhanced aesthetic appearance and allows product to be showcased as main lighting source, offering great installation versatility

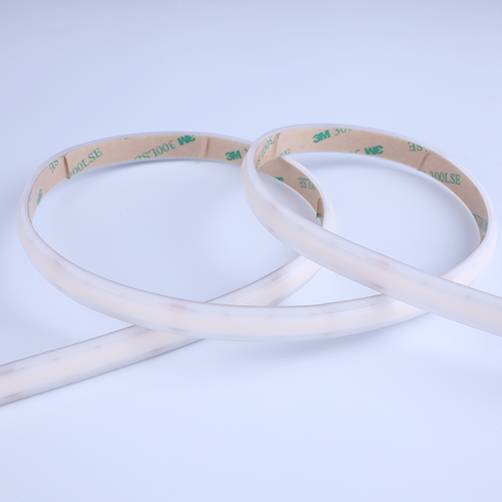

Single colour, RGB and tunable white flexible LED strip with self-adhesive back
Fast fit plug and play connections remove the need for time consuming soldering of joints
Large strip pack sizes and multiple connector packs offers great time saving and ease when working on a large scale projectJoint and connection accessories sold separately
High CRI 90 ensures the highest quality white light output

Variants

FAQ

: Ansell Lighting offer LED Strip for commercial and industrial use which can be controlled via Casambi and for residential use via WiZ with the installation of a controller.
: As the distance increases away from the driver, the amount of light produced reduces by the stated factor and where the maximum length is exceeded, the LED Strip will at that point will appear visibly somewhat dimmer, however it will still continue to operate.
: There is a maximum length stated for LED Strip and this will be dependent upon the characteristics of each different Strip. Basically, this is a low voltage DC circuit, where the amount of light produced by the individual LED’s is dependent upon receiving the specified forward current by way of the appropriate voltage, and this diminishes as the distance away from the Driver end of the strip increases. All LED Strips are quoted with details of the voltage drop over length.
: For many types of LED Strip, making a corner joint will require cutting and either reconnecting with connectors or in soldering the joints, however, the Ansell Z-Cell is an LED Strip which can bend around corners without connectors or accessories, thereby maintaining the continuity of the LED Strip across its length.
: All LED Strip is marked with the appropriate cut points and the strip should only be cut at those marked points displayed on the Strip itself. As LED Strip is basically constructed from a number of circuits in series, which are then installed in parallel, cutting at any other point will result in the last circuit not being fully connected and therefore will not operate in producing illumination.
: When using IP20 rated strip, this is possible with using the supplied connectors, however for IP65 and IP67 rated strip, the installer will be required to solder joints, in order to maintain ingress protection.
: Both the catalogue and the website provide a detailed list of the differences between 24Volt and 48Volt Drivers, of both Non-dimmable and Dimmable, as well as for Indoor and/or Outdoor.
: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
