Code: ADHBLED*

Deco

High/Low Bay

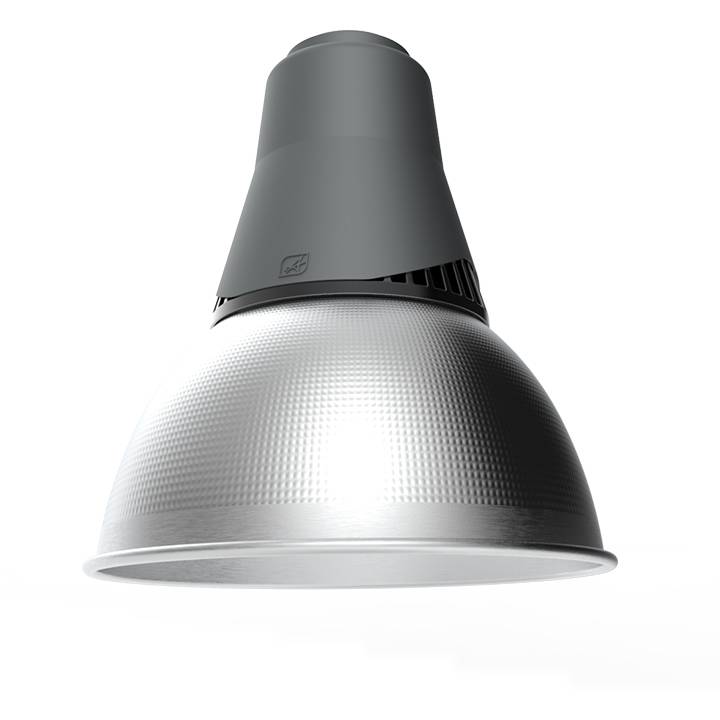

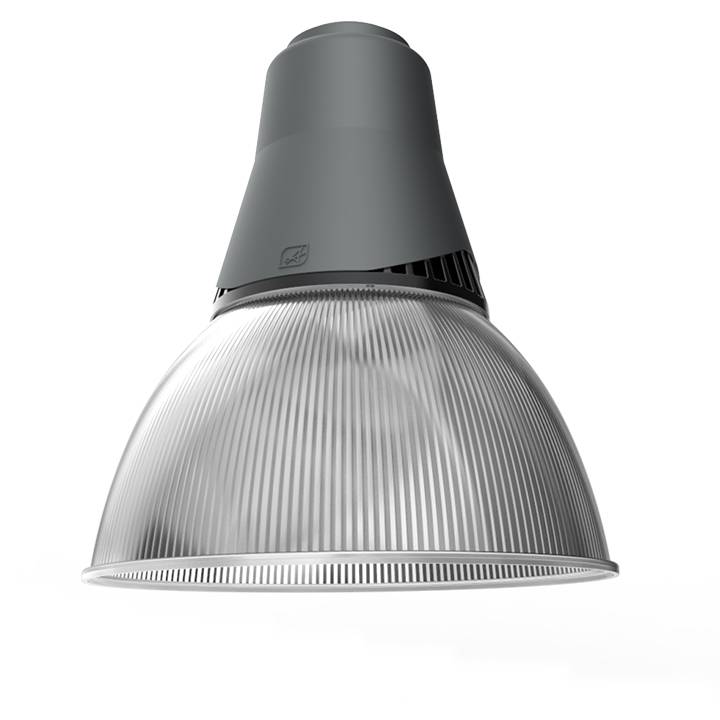

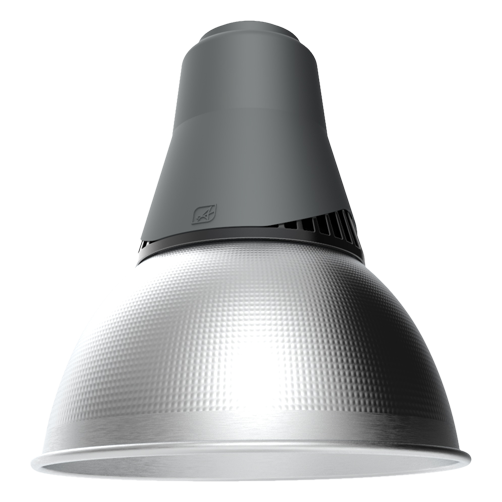

A decorative modern LED pendant, with selectable CCT 3000K/4000K and a matt grey textured powder coated finish. Supplied with either a polycarbonate refractor or aluminium reflector. Ideal for industrial, commercial, and retail applications.

Where to buy Got a question? Relux Calculator

Options

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C - 25°C, -20°C - 50°C

Lifetime

L70 54,000h

CRI

SDCM

Beam Angle

Class

IP Rating

IP20

IK Rating

IK06

Features

Decorative modern LED CCT selectable pendant suitable for industrial, commercial and retail applications
Supplied with either polycarbonate refractor or aluminium reflector
Matt grey textured powder coated finish

Variants

Related Case Study

Lakes College

Refurbishment and upgrade of communal area lighting

Learn more

Related Accessories

Deco High Bay CCT Polycarbonate Bottom Cover (360mm)

Deco High Bay CCT Suspension Kit

Similar Products

Z LED PLUS

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
