Code: AZLP*/*

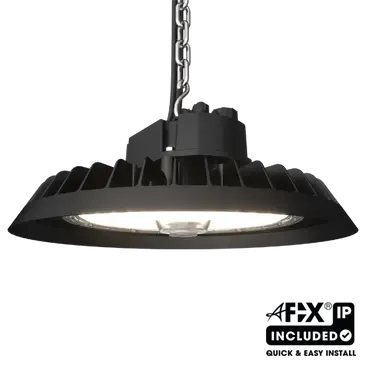

Z LED Performance

High/Low Bay

Robust, high efficacy, LED low/high bay for industrial, commercial and retail applications. CCT selectable between 4000K, 5000K and 6500K and intelligent plug and play emergency pack option offers a quick and simple conversion from
standard to emergency highbay.

Where to buy Got a question? Relux Calculator

Options

OCTO Smart Control

Dimmable

Specification

Input

220-240V

Hertz

50/60Hz

Temp

-20°C to 40°C

Lifetime

L90 50,000h

CRI

SDCM

Beam Angle

120

Class

IP Rating

IP65

IK Rating

IK10

Features

Robust, high efficacy, LED low/high bay for industrial, commercial and retail applications
CCT selectable between 4000K, 5000K and 6500K
Intelligent plug and play emergency pack option offers a quick and simple conversion from standard to emergency highbay
Plug and play microwave and PIR sensor options, offering maximum energy saving
Die-cast powder coated construction and heatsink for optimum thermals and performance
Alternative installation options by means of jack chain and catenary wire
Additional 55° narrow lens option ideal for racking aisles
Bracket accessories available for ceiling or wall mounting
Pre-wired with 1.5M of H07RN-F cable for ease and speed of installation
1-10V dimmable as standard
Integrated 6kV surge protection

Variants

Related Case Study

Ansell Lighting – Warehouse Facility

We at Ansell Lighting upgraded our Warrington warehouse with Z LED Performance and Z LED Linear Opti-X luminaires, incorporating OCTO smart controls. This enhanced energy efficiency, improved lighting conditions, and achieved payback within two years.

Learn more

Warehouse-AnsellLighting-14May2024-DecoyMedia-41

FAQ

: Declarations of Conformity are available on request, please contact our Technical Department (technical@anselluk.com)
: Firstly, the installation of any lighting control within an application can provide significant benefits, not only in energy saving, but also in the continued specified performance and the economic life of the lighting fittings.

There are three basic types of control to consider.

Photo Electric Cell Units are basically a switch which operates automatically based upon the amount of ambient light and their function is in two different operations, to switch the lighting on when the ambient lighting level falls below a given value and to switch the lighting off when the ambient lighting level rises above the given value.

Microwave sensors operate by emitting a high frequency microwave beam over a designated area and when that beam is invaded by motion, this determines presence and activates the lighting to be switched on. An ideal solution for external lighting applications as they do not require a hole to be cut into the luminaire.

Passive Infra-Red Sensors (PIR) are electronic sensors which measure Infra-red light radiating from objects within the field of view, working where infra-red radiation enters the segmented front.

Read more in our blog article.
: All light sources degrade over time. LM80 is the method for measuring how much lumen depreciation the light source will suffer. This is not to be confused with an estimation of life. LED's typically do not fail as they have no filament to burn to end their life, rather degrade beyond useful life output.
